AC Hydraulic - GGD150F - Air-hydraulic pit jack

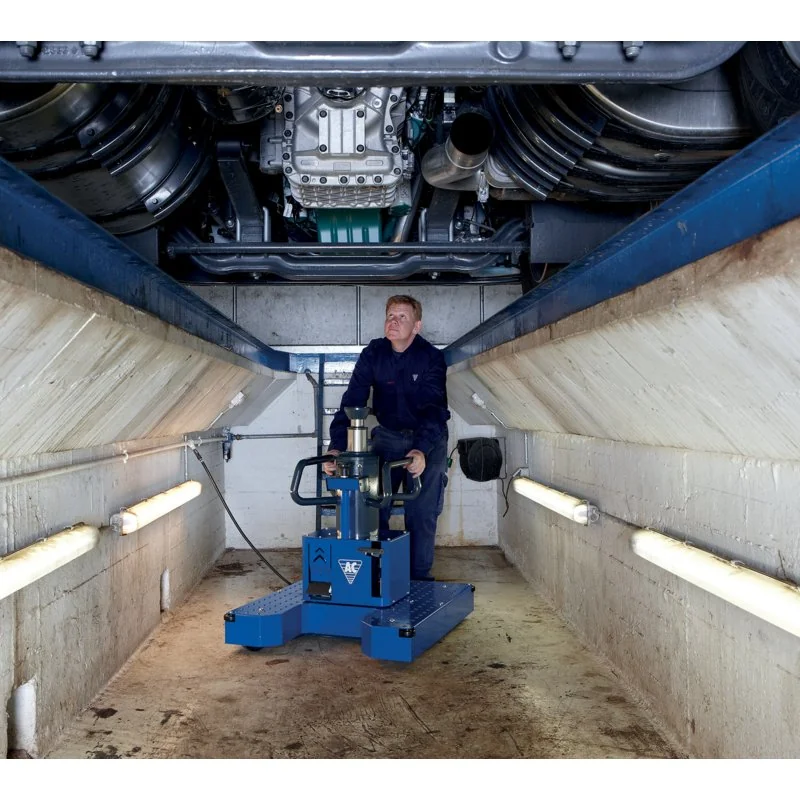

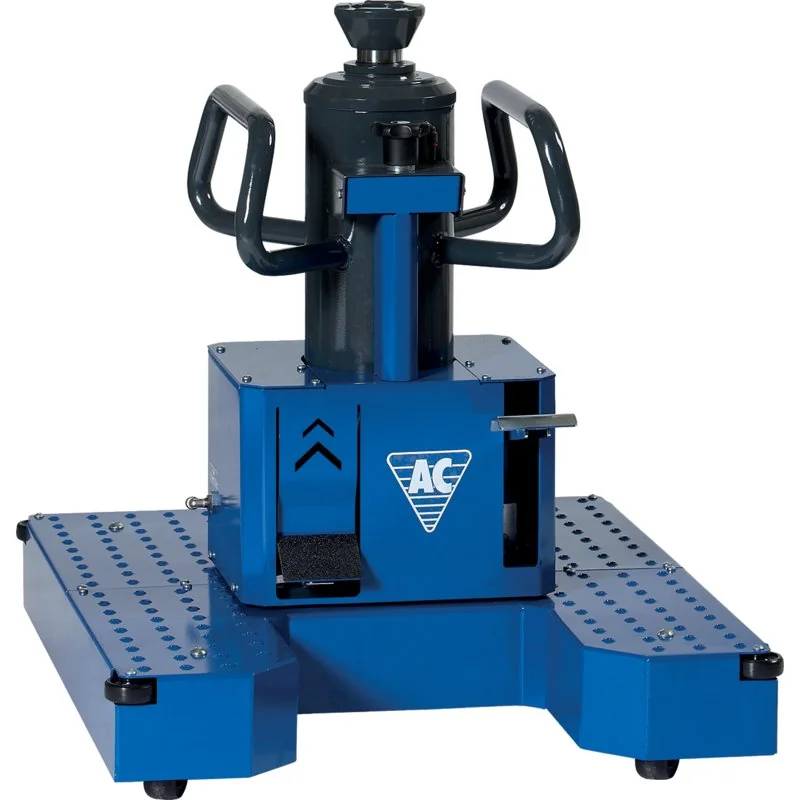

Floor-running air-hydraulic pit jack GGD150F with transversely movable telescopic cylinder. The freely movable model GGD150U is designed for use in the pit as well as on the workshop floor under a lift. Facilitates positioning the jack under the vehicle and allows optimal mobility for the mechanic in the pit. All models come standard with an extremely unrivaled large piston stroke of 1285 mm with a capacity of 15/15 t. Fast and precise foot-operated air hydraulics with rapid traverse up and down. Load lifting also occurs via the air motor. The telescopic cylinder also makes it ideal for transmission repairs. Integrated manual foot pump for fine adjustment. Spring-loaded chassis secures against unintentional movements during lifting above 800 kg. Dead man's control and safety valve for maximum safety. Wide range of accessories such as axle crossbeams, extensions, transmission plates and support systems available! * NOTE - Chassis according to pit dimensions required! Please always fill out the dimension sheet when ordering!
