AGCO - 4-1220-0079-0 - Set Of Adjustment Shims Massey Ferguson Lely
AGCO - 4-1220-0079-0 - Set Of Adjustment Shims Massey Ferguson Lely
AGCO - 4-1220-0079-0 - Set Of Adjustment Shims Massey Ferguson Lely
AGCO - 4-1220-0079-0 - Set Of Adjustment Shims Massey Ferguson Lely

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping on orders over €60

Pay Securely with

AGCO - 4-1220-0079-0 - Set Of Adjustment Shims Massey Ferguson Lely

AGCO - 4-1220-0079-0 - Set Of Adjustment Shims Massey Ferguson Lely

€29.09

(Excl. VAT)

Price

(Excl. VAT)

€29.09

Product Description

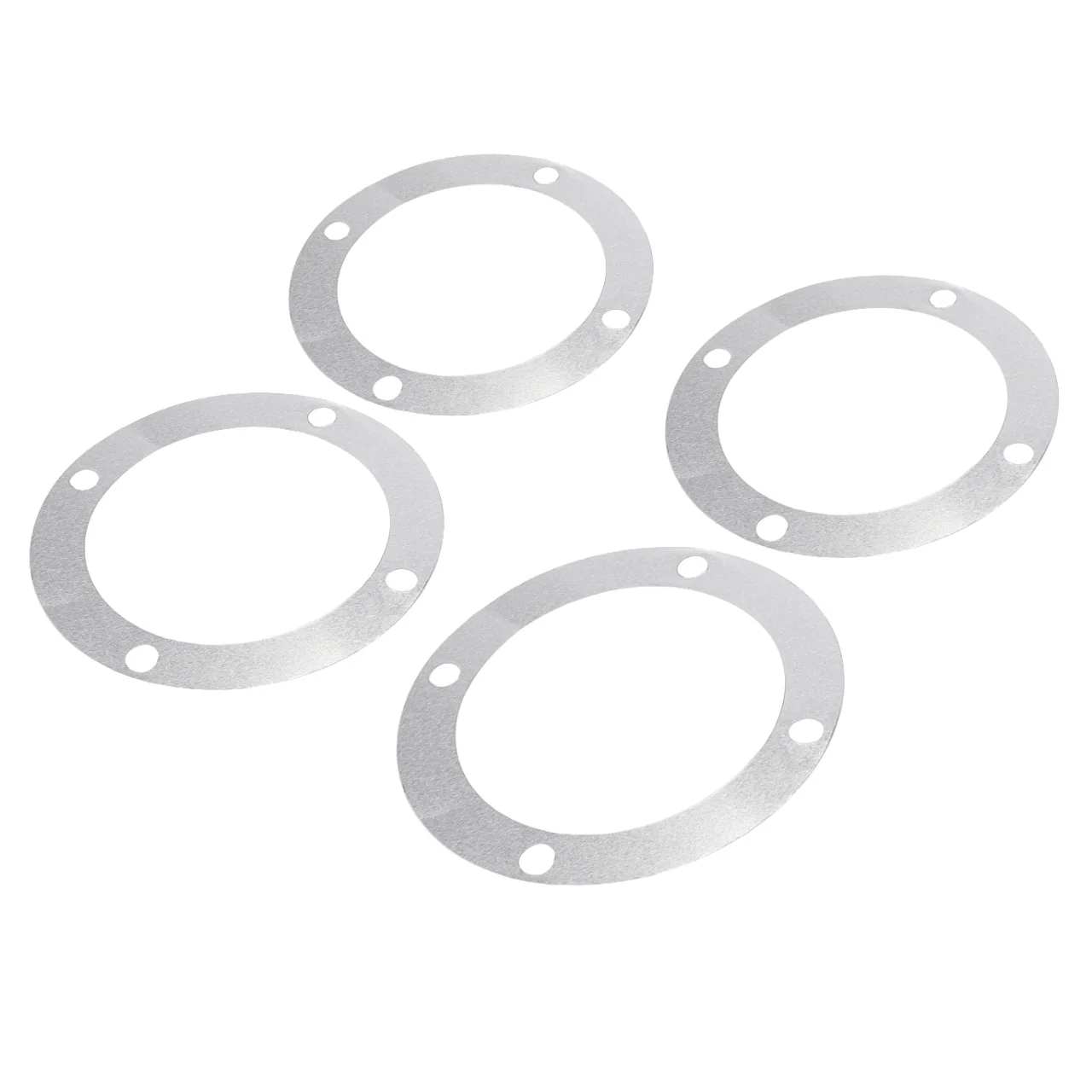

This washer set provides the shims needed to adjust the axial clearance between the cutterbar drive and the bearing housing on a disc mower. The set contains four individual washers of different thicknesses, allowing the operator to stack combinations to achieve the specified end-play. Proper clearance prevents bearing preload that would cause overheating and premature failure, while excessive clearance leads to impact loading on the gear teeth. On reassembly, install the washers in the correct order against the bearing race and verify the shaft free-play with a dial indicator before locking the retaining nut.
AGCO

Product Details

Brand
AGCO
Thickness
(0,1+0,1+0,3+0,5) mm
Application
Forage machines
Product Type
Washer Set
Inner Diameter
88 mm
Outer Diameter
119 mm
Manufacturer
AGCO
