AGCO - F916100600030 - Hydraulic Oil Filter Housing Massey Ferguson

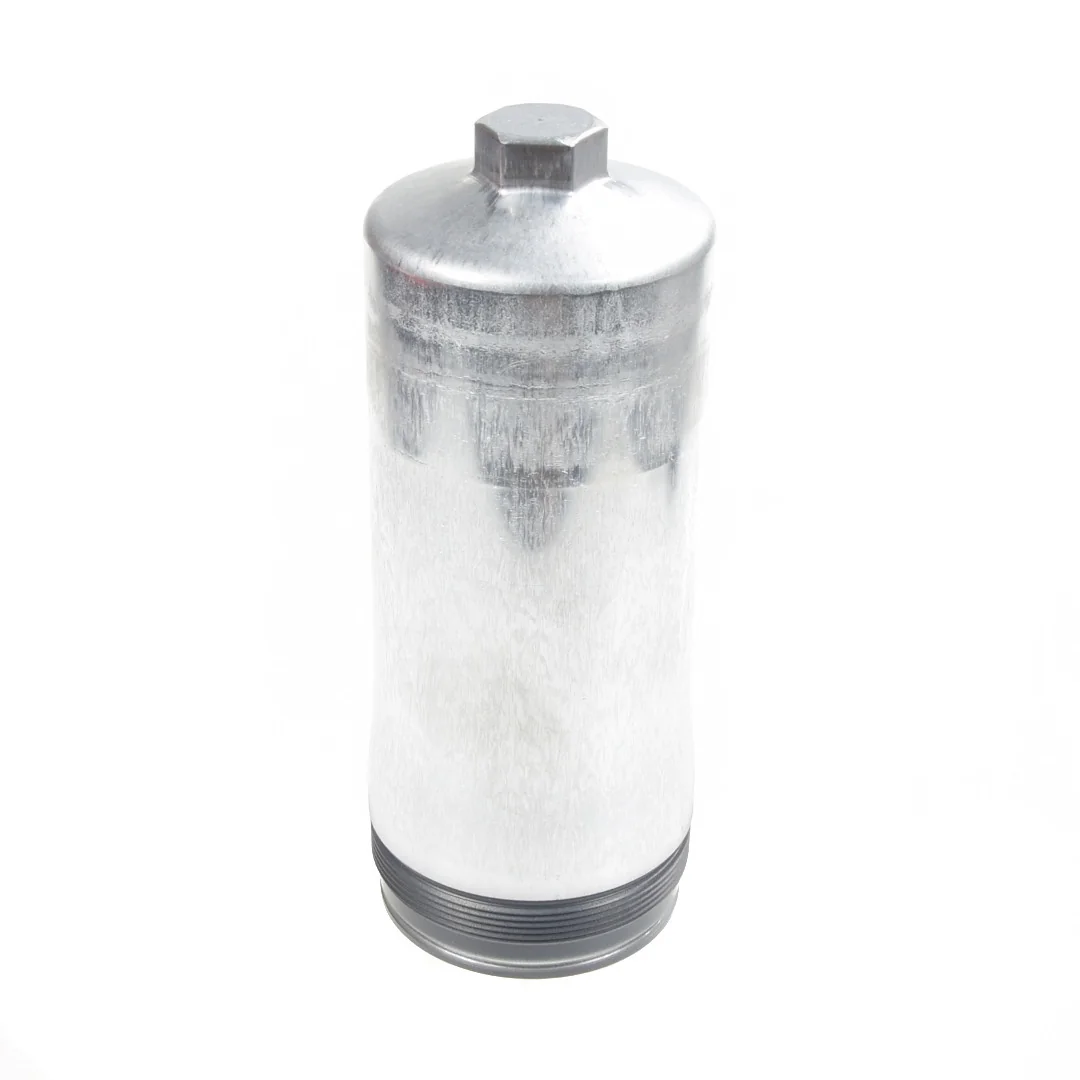

This hydraulic oil filter housing encloses the filter element and directs fluid flow through the hydraulic system. It is installed between the reservoir and the high-pressure pump, providing the sealed passage that forces return oil through the filter media before recirculation. A damaged housing can allow air ingress or fluid bypass, causing cavitation and reduced pump output. Manufactured by AGCO, the housing is cast to the same port geometry and seal-face flatness as the original assembly, ensuring the filter element seats correctly and the bypass valve operates at its designed cracking pressure. When replacing the housing, transfer the O-ring from the old unit or install a new seal, and tighten the mounting bolts to the torque specification for the host tractor.
