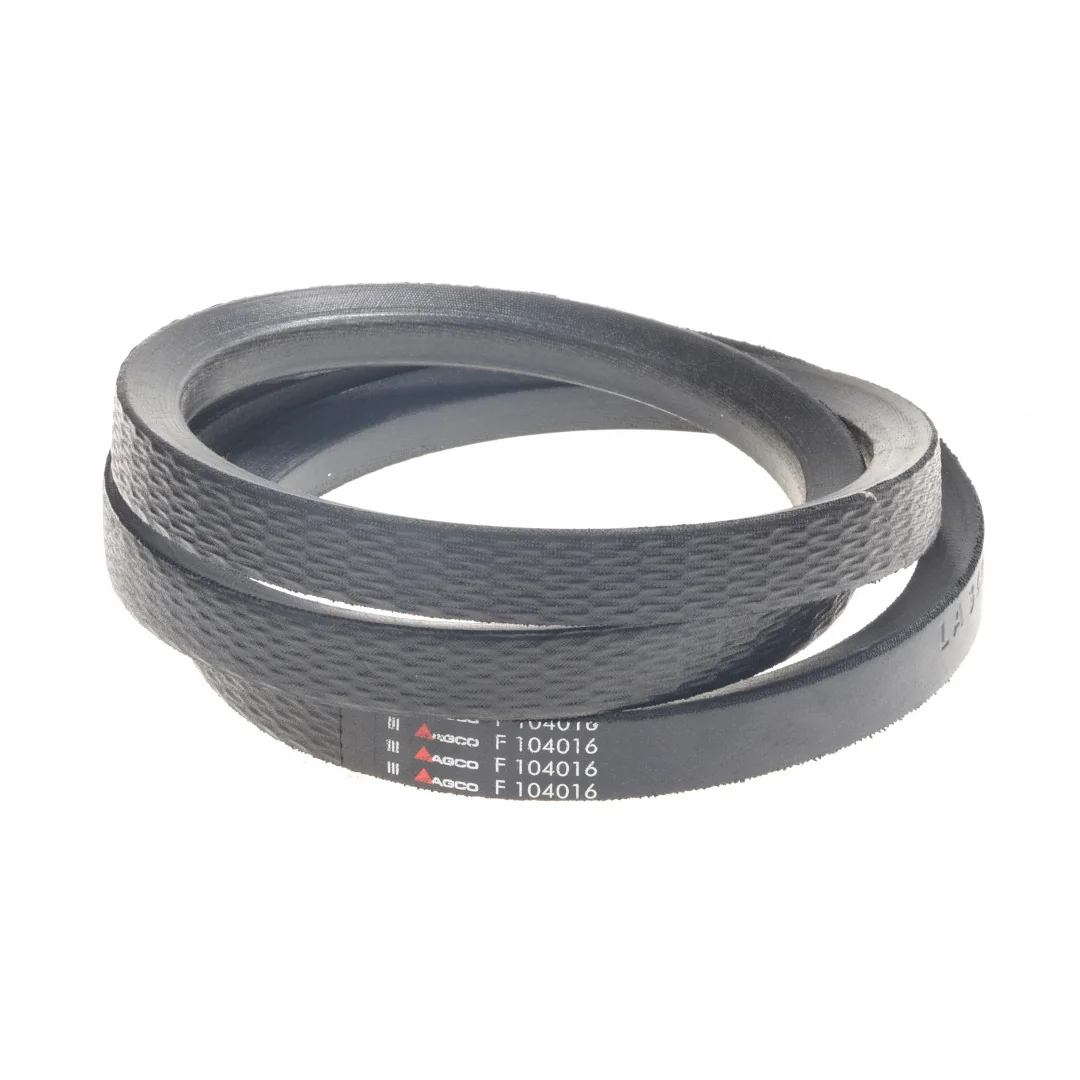

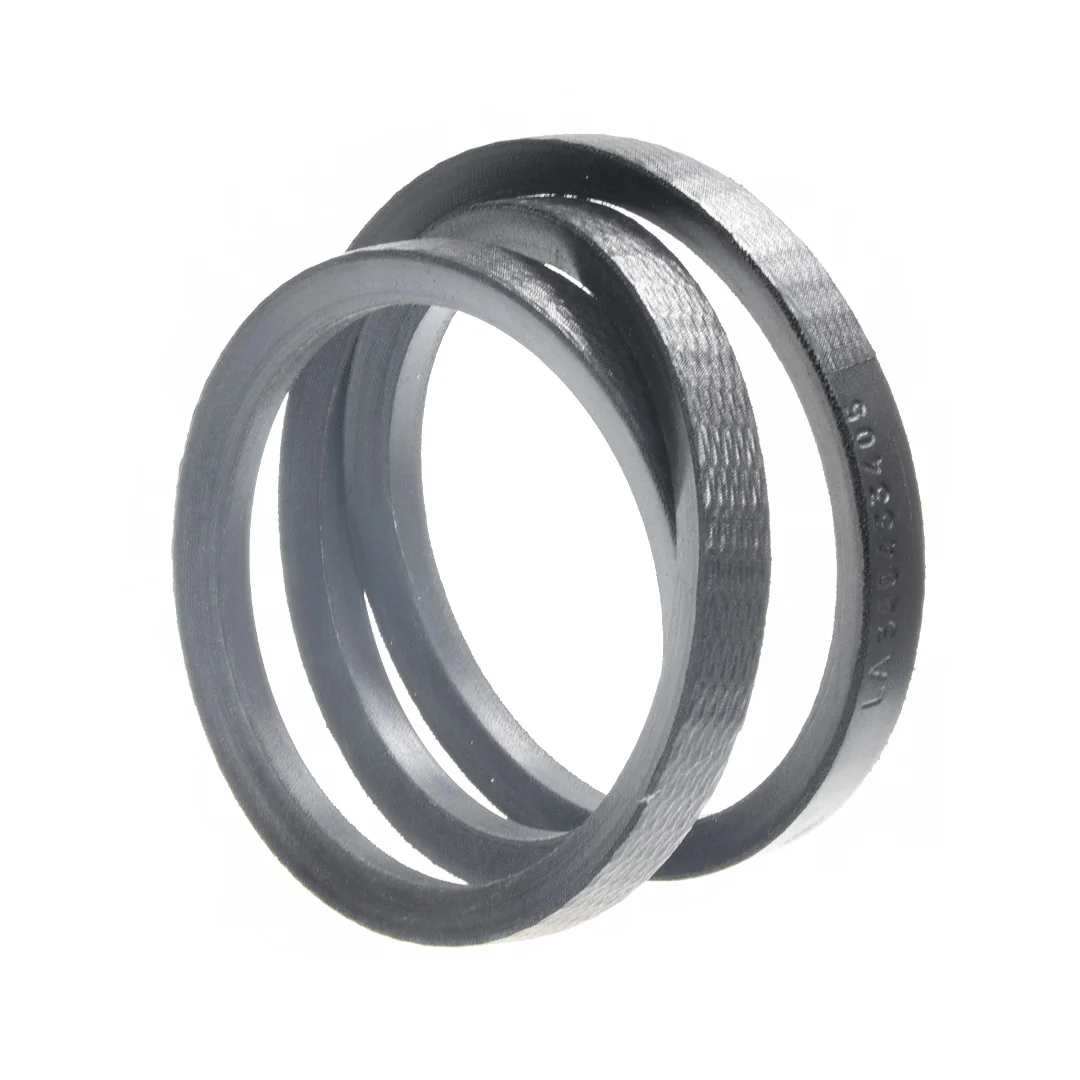

AGCO - LA340433405 - V-Belt Massey Ferguson
AGCO - LA340433405 - V-Belt Massey Ferguson
AGCO - LA340433405 - V-Belt Massey Ferguson
AGCO - LA340433405 - V-Belt Massey Ferguson
AGCO - LA340433405 - V-Belt Massey Ferguson
AGCO - LA340433405 - V-Belt Massey Ferguson

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping on orders over €60

Pay Securely with

AGCO - LA340433405 - V-Belt Massey Ferguson

AGCO - LA340433405 - V-Belt Massey Ferguson

€31.03

(Excl. VAT)

Price

(Excl. VAT)

€31.03

Product Description

This V-belt transmits drive from the engine to the straw-walker mechanism on a combine harvester. It runs on the pulley set that powers the oscillating walker assembly, which separates grain from the material mat. A worn or stretched belt causes walker speed to drop, reducing separation efficiency and increasing grain loss out the rear of the machine. As an original AGCO component, the belt is molded to the same cross-section profile as the original pulley groove, so it seats at the correct working depth without slipping or requiring a tensioner adjustment beyond the standard range. On installation, verify the belt is not twisted and that the tensioner spring returns to its normal travel arc.
AGCO

Product Details

Brand
AGCO
Fits

Claas

Dominator 100Dominator 80Dominator 85

Fendt

5250 L5255 L5270 C5275 C6270 L6275 L6300 C6335 C

Massey ferguson

Activa 7245Activa 7247 SActiva 7345 SActiva 7347 SBeta 7260Beta 7265Beta 7270Beta 7360Beta 7370
Width
22 mm
Height
14 mm
Location
Walkers
Product Type
V-belt
Number Of Ribs
1
Pitch Length (Lp)
1710 mm
Inside Length (Li)
1660 mm
Outside Length (La)
1750 mm
Manufacturer
AGCO
