AGCO - X697173600000 - Multi-Ribbed V-Belt Fendt
AGCO - X697173600000 - Multi-Ribbed V-Belt Fendt
AGCO - X697173600000 - Multi-Ribbed V-Belt Fendt
AGCO - X697173600000 - Multi-Ribbed V-Belt Fendt
AGCO - X697173600000 - Multi-Ribbed V-Belt Fendt

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping on orders over €60

Pay Securely with

AGCO - X697173600000 - Multi-Ribbed V-Belt Fendt

AGCO - X697173600000 - Multi-Ribbed V-Belt Fendt

€13.08

(Excl. VAT)

Price

(Excl. VAT)

€13.08

Product Description

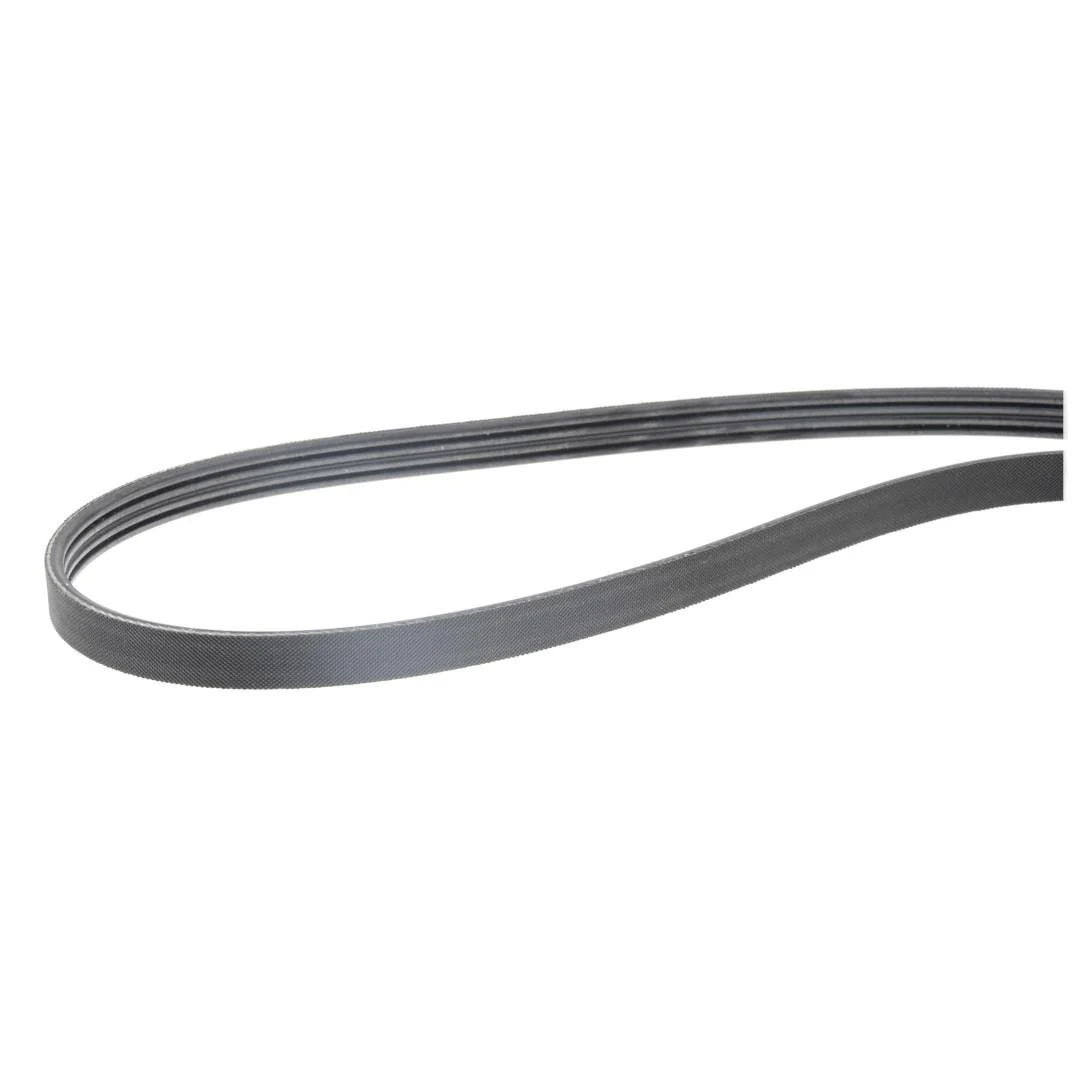

This multi-ribbed V-belt transmits power from the engine crankshaft to the driven accessories in the drive system. It sits in the pulley set at the front of the engine, routing torque to the alternator, water pump, and fan. The belt has four ribs running its full length, which engage with matching grooves on the pulleys to prevent slip under load. A worn or glazed belt produces a squealing noise at startup and reduces alternator output, leading to a gradual battery drain. Because this is an original AGCO part, the rib profile and belt length match the pulley groove geometry of the original assembly, so no tensioner adjustment beyond the factory specification is needed on installation.
AGCO

Product Details

Brand
AGCO
Fits

Fendt

Farmer 307Farmer 308Farmer 309
Type
4PK
Width
14 mm
Height
5 mm
Location
Engine, Drive system
Application
Tractors and vehicles
Product Type
V-belt
Number Of Ribs
4
Inner Length (Li)
1365 mm
Effective Length (Lp)
1380 mm
Manufacturer
AGCO
