Agreto - AGW0410SE - Other Electrical Components

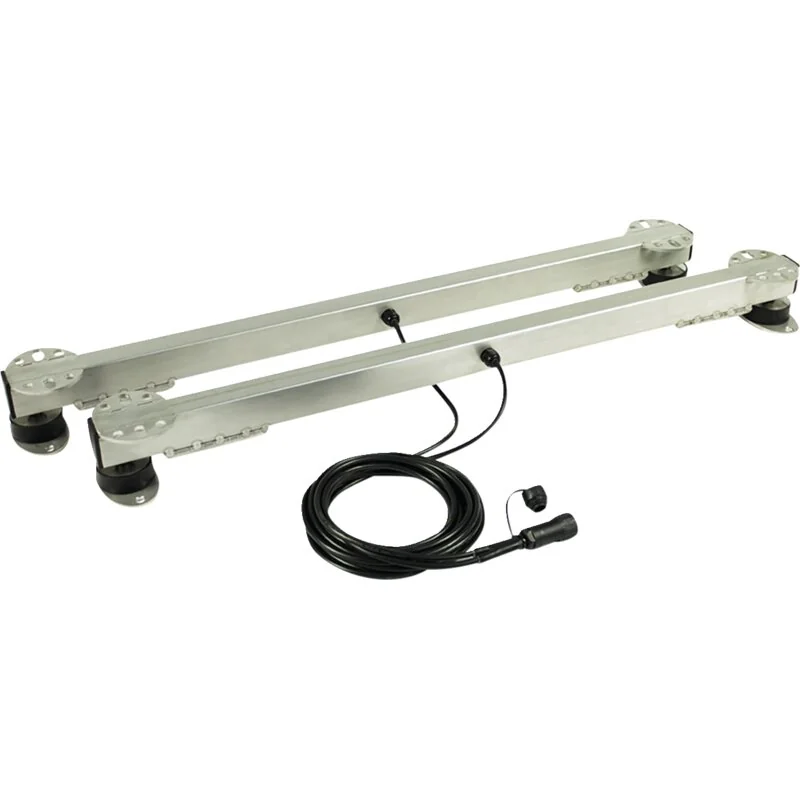

AGRETO Weighing Beam SET 2x1.000 HD1 2 robust, easy-to-install weighing beams Total capacity when installed under self-supporting platform 4.000 kg (2.000 kg per beam, 1.000 kg per load cell) Load cells made of nickel-plated tool steel, waterproof according to protection class IP68 Height-adjustable feet with elastomer damping element, robust M16 threads and possibility of floor mounting Total height between 85 and 100mm 4m long tread-resistant, UV-resistant signal cables with waterproof, robust screw connection IP68 AGRETO Weighing Indicator HD1 Display unit and mounting bracket made of brushed stainless steel sheet Dust and waterproof according to protection class IP 67 Dimensions incl. bracket 258x178x58mm LxWxH Large, clear, 6-digit LCD display with backlight, digits approx. 25 mm high, easily readable up to 10m Standard resolution 0,5 kg The display has the following functions: Automatic zero setting when switched on (selectable), manual zero setting, zero point stabilization, summation, piece counting, automatic animal weighing mode (shows a stable weight even with restless animals) Power supply via built-in 230V power supply, connection cable 1m Battery/rechargeable battery operation possible with 2x1,5V AA, waterproof battery compartment Connection of load cells (up to 6 pieces possible) via waterproof screw plug RS232 interface for external large display or connection to a PLC PC software HD1-Desktop for data transfer and logging
