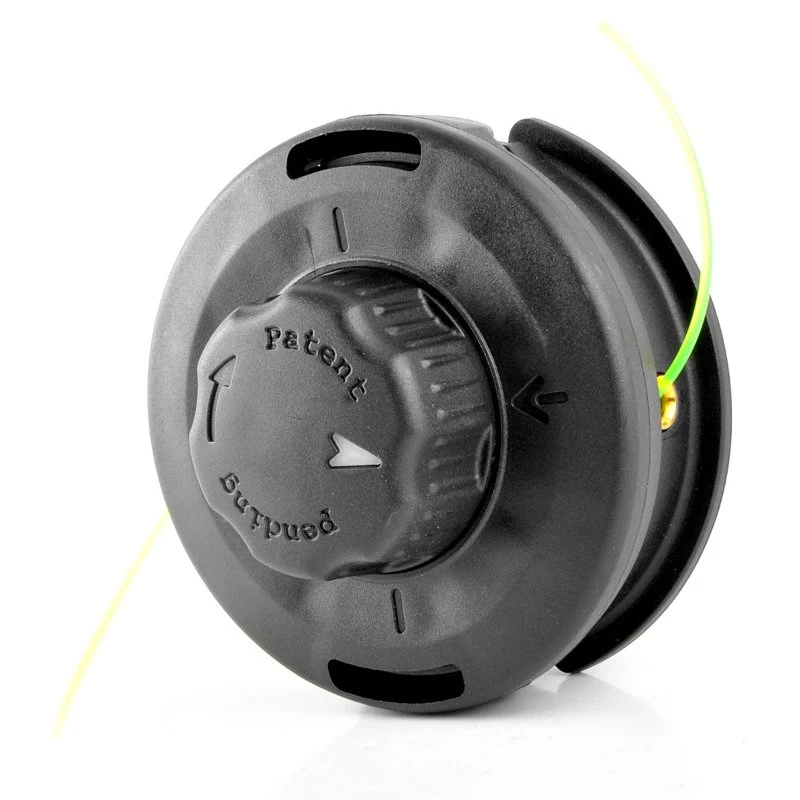

Al Ko - 113643 - Trimmer Line Head with Line Winding System M10x1.25 EASYLOAD

The cutting head has been equipped with a line loading system. Thanks to this solution, there is no need to open the drum and get to its inside. To refill the cutting line, set the release mechanism (knob to the bottom) on the marks. Then insert the end of the line into the hole and push the line until it is threaded through to the other side. When the end of the line is on the other side of the head, pull the line through the drum in the amount that the head magazine can hold (e.g., 1300 mm). To wind the set amount of line, turn the lower movable part of the drum - the ratchet rotating mechanism - clockwise. During the rotation, the line will automatically wind onto the spool in an orderly harmonic division. The line loading process is simple, quick, and much less complicated than the process of refilling the line in a traditional cutting head.
