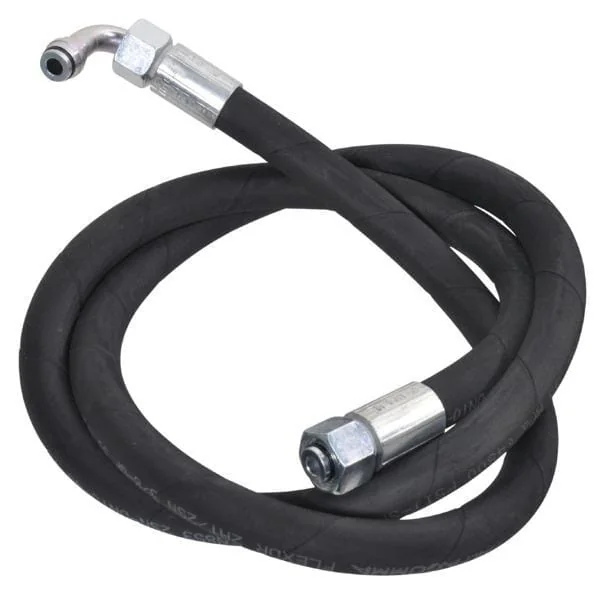

Alfagomma - DKLO10200090 - Hydraulic Hose Complete DN10 2000-90°
Alfagomma - DKLO10200090 - Hydraulic Hose Complete DN10 2000-90°

In stock - ready to ship

Order now for delivery between 11 May and 14 May
Free shipping on orders over €60

Pay Securely with

Alfagomma - DKLO10200090 - Hydraulic Hose Complete DN10 2000-90°

Alfagomma - DKLO10200090 - Hydraulic Hose Complete DN10 2000-90°

€22.16

(Excl. VAT)

Price

(Excl. VAT)

€22.16

Product Description

DKLO hoses are ready-to-use hoses, available in the most common lengths and already fitted with inserts and crimp sleeves. Easy to order and immediately deployable for optimum time savings. Other combinations/customisations are available via the "Kramp product configurator", see "Services" at the bottom of each web page. Show more
Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand
Alfagomma
Pros
Very competitively priced Available from stock Fast assembly
Unit
Each
Length
2 m
Approval
ABS BV DNN KOMAG GL NKK RINA
Includes
Complete hose with 1x straight 1x 90° coupling (screw cap M18x1.5 (12L))
Type code
HST-10-2SN
EN Standard
853-2SN
Material inside
Nitrile rubber [NBR]
Material outside
Styrene-butadiene rubber (SBR)
Connection 1 type
Swivel nut
Connection series
12L
Max working pressure
330 BAR
Max working temperature
100 °C
Min working temperature
-40 °C
Connection 1 thread type
Metric
Connection 1 pitch of thread
1.50 mm
Connection 1 thread diameter
M18
Manufacturer
Alfagomma
