Alfagomma - HT1SN06 - Hydraulic Hose High Temp DN06
Alfagomma - HT1SN06 - Hydraulic Hose High Temp DN06
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Alfagomma - HT1SN06 - Hydraulic Hose High Temp DN06

Alfagomma - HT1SN06 - Hydraulic Hose High Temp DN06

€10.52

(Excl. VAT)

Price

(Excl. VAT)

€10.52

Product Description

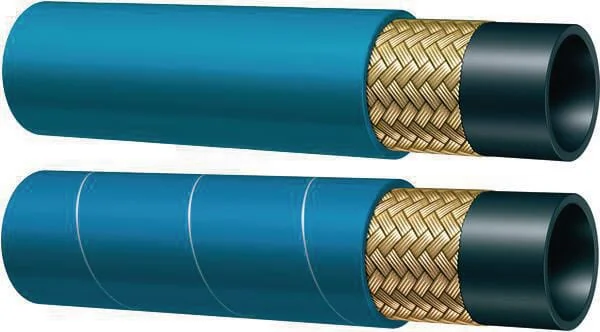

Hydraulic hose rubber with 1 braided steel inlay with high tensile strength High temperature resistant hose Peel hose before pressing Blue smooth outer coating up to 5/8" Blue wrapped textile print from 3/4" Hydraulic systems operating in the temperature range: -40°C +150°C Air systems: max. 85°C up to 5/8", from 3/4" up to 110°C Not recommended for steam Different available lengths SAE 100R1AT EN 853 1SN ISO 1436-1 Always consult the latest press dimensions tables, see downloads at the bottom of each web page
Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand
Alfagomma
DN
6 mm
Norm
SAE 100 R1AT
Pros
High temperature range Wear-resistant outer coating
Type
Hydraulic high pressure hose
Unit
Metre
Medium
Hydraulic oil
Weight
0,14 lb/ft
Bend radius
3,94 Inch
EN standard
853 1SN
ISO standard
1436
Qty. Rounding
0.01
Burst pressure
13000 lbf/in²
Material inside
Synthetic rubber
Number of plies
1
Material outside
Synthetic rubber
Reinforcement type
Braid
Hose inside diameter
6 mm
Max working pressure
3250 lbf/in²
Hose outside diameter
0.50 Inch
Reinforcement material
Steel
Max working temperature
150 °C
Min working temperature
-40 °C
Max. working temperature
300 °F
Min. working temperature
-40 °F
Reinforcement number of plies
1
Manufacturer
Alfagomma
