Alfagomma - KIM0916 - Elbow Coupling 9/16 JIC x M16
Alfagomma - KIM0916 - Elbow Coupling 9/16 JIC x M16
Alfagomma - KIM0916 - Elbow Coupling 9/16 JIC x M16
Alfagomma - KIM0916 - Elbow Coupling 9/16 JIC x M16
Alfagomma - KIM0916 - Elbow Coupling 9/16 JIC x M16
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Alfagomma - KIM0916 - Elbow Coupling 9/16 JIC x M16

Alfagomma - KIM0916 - Elbow Coupling 9/16 JIC x M16

€10.92

(Excl. VAT)

Price

(Excl. VAT)

€10.92

Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand
Alfagomma
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Cone angle
74 °
Pipe diameter
3/8 Inch
Connection 2, type
Thread
Connection no 1 type
Thread
Max working pressure
380 BAR
L1Connections distance
36,5 mm
Connection 2, thread type
Metric
Connection no 1 thread type
JIC
F2Connection 2, thread pitch
1.50 mm
Connection 2, thread diameter
M16
Connection 2, type - male/female
Male
Connection no 1 threads per inch
18
F1Connection no 1 thread diameter
9/16 Inch
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
28,5 mm
Manufacturer
Alfagomma

Similar items you might like

  • Alfagomma

    Alfagomma - KIM1216 - Elbow Coupling 3/4 JIC x M16

    Alfagomma

    €11.71

  • Alfagomma

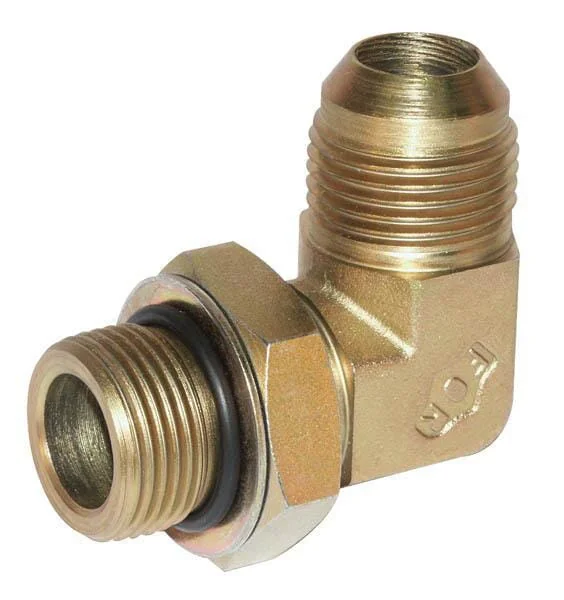

    Alfagomma - KIM1218 - Elbow Coupling 3/4 JIC x M18

    Alfagomma

    €13.55

  • Alfagomma

    Alfagomma - KIM1418 - Elbow Coupling 7/8 JIC x M18

    Alfagomma

    €11.61

  • Alfagomma

    Alfagomma - KIM1422 - Elbow Coupling 7/8 JIC x M22

    Alfagomma

    €8.77

  • Alfagomma

    Alfagomma - KIN0702 - Elbow Coupling 7/16 JIC x 1/8 NPT

    Alfagomma

    €4.97

  • Alfagomma

    Alfagomma - KIN0704 - Elbow Coupling 7/16 JIC x 1/4 NPT

    Alfagomma

    €6.64

  • Alfagomma

    Alfagomma - KIN0804 - Elbow Coupling 1/2 JIC x 1/4 NPT

    Alfagomma

    €4.95

  • Alfagomma

    Alfagomma - KIN0904 - Elbow Coupling 9/16 JIC x 1/4 NPT

    Alfagomma

    €5.16

  • Alfagomma

    Alfagomma - KIN0906 - Elbow Coupling 9/16 JIC x 3/8 NPT

    Alfagomma

    €6.59

  • Alfagomma

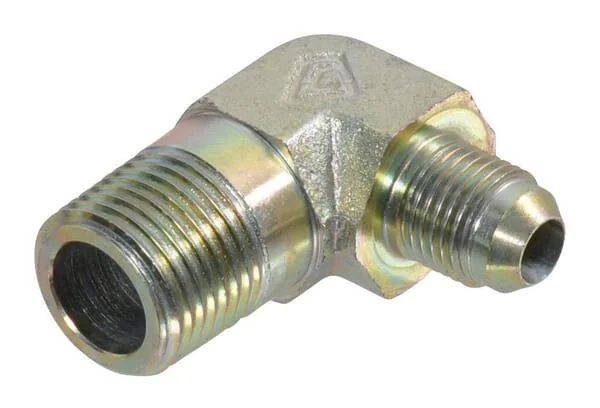

    Alfagomma - KIN0908 - Elbow Coupling 9/16 JIC x 1/2 NPT
