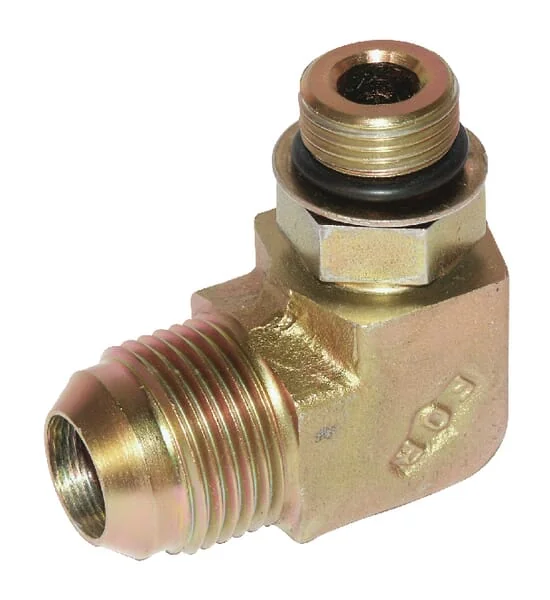

Alfagomma - KIU1412 - Elbow 7/8 JIC x 3/4 UNF
Alfagomma - KIU1412 - Elbow 7/8 JIC x 3/4 UNF
Alfagomma - KIU1412 - Elbow 7/8 JIC x 3/4 UNF
Alfagomma - KIU1412 - Elbow 7/8 JIC x 3/4 UNF

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping on orders over €60

Pay Securely with

Alfagomma - KIU1412 - Elbow 7/8 JIC x 3/4 UNF

Alfagomma - KIU1412 - Elbow 7/8 JIC x 3/4 UNF

€12.87

(Excl. VAT)

Price

(Excl. VAT)

€12.87

Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand
Alfagomma
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Material
Steel
Cone angle
74 °
Working pressure
280 BAR
Surface treatment
Galvanised
Connection 2, type
Thread
Connection no 1 type
Thread
Connection 2, thread type
UNF
Connection no 1 thread type
JIC
Connection 2, thread diameter
3/4 Inch
Connection 2, threads per inch
16
Connection 2, type - male/female
Male
Connection no 1 threads per inch
16
F1Connection no 1 thread diameter
7/8 Inch
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
36,5 mm
Connection no 1 center to end distance
39,5 mm
Manufacturer
Alfagomma
