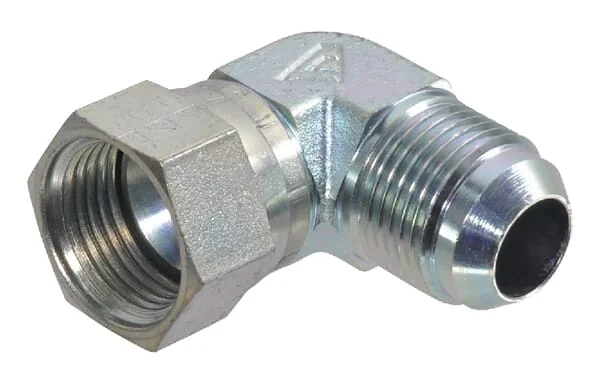

Alfagomma - KOU14 - Elbow Male/Female 7/8 JIC 90°
Alfagomma - KOU14 - Elbow Male/Female 7/8 JIC 90°
Alfagomma - KOU14 - Elbow Male/Female 7/8 JIC 90°
Alfagomma - KOU14 - Elbow Male/Female 7/8 JIC 90°

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Alfagomma - KOU14 - Elbow Male/Female 7/8 JIC 90°

Alfagomma - KOU14 - Elbow Male/Female 7/8 JIC 90°

€9.92

(Excl. VAT)

Price

(Excl. VAT)

€9.92

Product Description

For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37º cone side is UNF in accordance with ANSI
Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand
Alfagomma
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Cone angle
74 °
Pipe diameter
5/8 Inch
Connection 2, type
Thread
Connection no 1 type
Thread
Max working pressure
280 BAR
Connection 2, diameter
7/8 Inch
Connection 2, thread type
JIC
Connection 2, thread pitch
14.00 mm
Connection no 1 thread type
JIC
Connection 2, thread diameter
7/8 Inch
Connection no 1 thread length
40,7 mm
Connection 2, type - male/female
Male
Connection no 1 threads per inch
14
F1Connection no 1 thread diameter
7/8 Inch
Connection no 1 type - male/female
Female
Connection 2, centre to end distance
36,5 mm
Manufacturer
Alfagomma
