Alfagomma - KS09 - Bulkhead Elbow 9/16 JIC

Alfagomma - KS09 - Bulkhead Elbow 9/16 JIC

Alfagomma - KS09 - Bulkhead Elbow 9/16 JIC

Alfagomma - KS09 - Bulkhead Elbow 9/16 JIC

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping on orders over €60

Pay Securely with

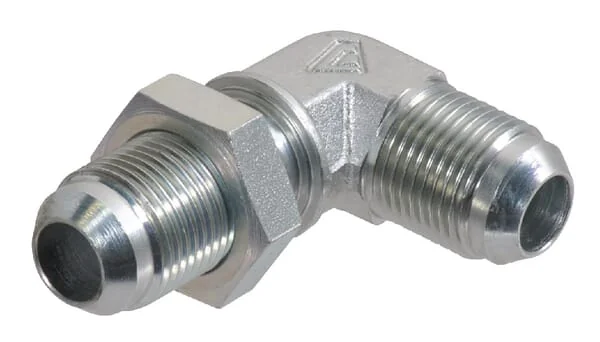

Alfagomma - KS09 - Bulkhead Elbow 9/16 JIC

Alfagomma - KS09 - Bulkhead Elbow 9/16 JIC

€10.13

(Excl. VAT)

Price

(Excl. VAT)

€10.13

Number of products

Alfagomma

Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Material

Steel

Cone angle

74 °

Pipe diameter

3/8 Inch

Surface treatment

Galvanised

Connection 2, type

Thread

Connection no 1 type

Thread

Connections distance

46 mm

Max working pressure

380 BAR

Connection 2, thread type

UNF

Connection no 1 thread type

JIC

FConnection 2, thread diameter

9/16 Inch

Connection 2, type - male/female

Male

FConnection no 1 thread diameter

9/16 Inch

Connection no 1 type - male/female

Male

Connection 2, centre to end distance

27,5 mm

Manufacturer

Alfagomma
