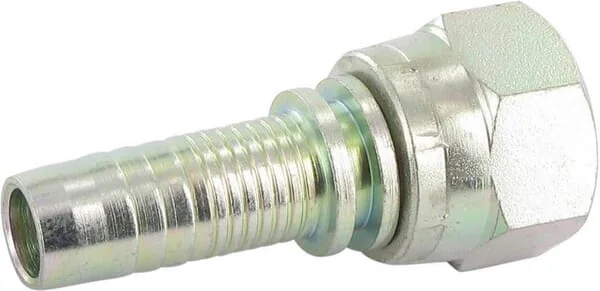

Alfagomma - PA1312 - Insert DN13-3/4 UNF

Alfagomma - PA1312 - Insert DN13-3/4 UNF

Alfagomma - PA1312 - Insert DN13-3/4 UNF

Alfagomma - PA1312 - Insert DN13-3/4 UNF

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

Alfagomma - PA1312 - Insert DN13-3/4 UNF

Alfagomma - PA1312 - Insert DN13-3/4 UNF

€3.64

(Excl. VAT)

Price

(Excl. VAT)

€3.64

Number of products

Product Description

Application range: Flanged screw fitting Properties: Cone, metal on metal seal Technical information: Available in stainless steel on request

Alfagomma

Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Material

Steel

Cone angle

37 °

Surface treatment

Zinc-plated White passivated

Connection 2, type

Hose end

Connection no 1 type

Swivel nut Cone

Connection 2, diameter

13 mm

Connection no 1 type code

DKJ

Connection no 1 thread type

UNF

CH1Connection no 1 wrench size

25.0 mm

Connection 2, type - male/female

Male

F1Connection no 1 thread diameter

3/4 Inch

Connection no 1 type - male/female

Female

CConnection centre to insert distance

18,6 mm

Manufacturer

Alfagomma

Similar items you might like

Alfagomma - PA131245 - Insert DN13-3/4-UNF-45°
Alfagomma
€5.39
Alfagomma - PA131290 - Insert DN13-3/4-UNF-90°
Alfagomma
€5.19
Alfagomma - PA1314 - Insert DN13-7/8 UNF
Alfagomma
€3.97

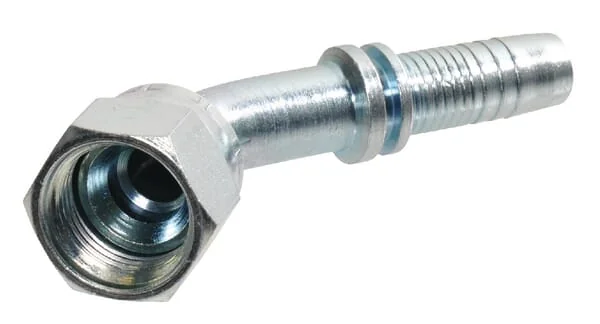

Alfagomma - PA131445 - Insert DN13-7/8-UNF-45°
Alfagomma
€5.57
Alfagomma - PA131490 - Insert DN13-7/8-UNF-90°
Alfagomma
€5.43
Alfagomma - PA1317 - Insert DN13-1"1/16 UNF
Alfagomma
€5.43

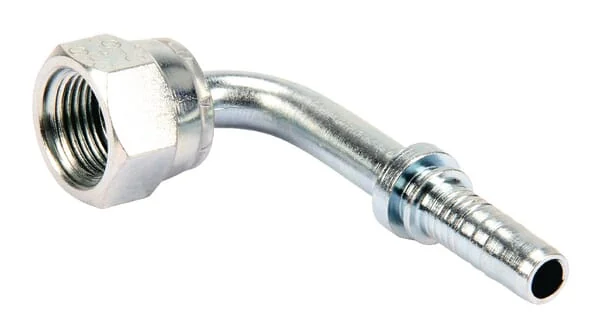

Alfagomma - PA13990S - Insert DN13 F 9/16" JIC 90
