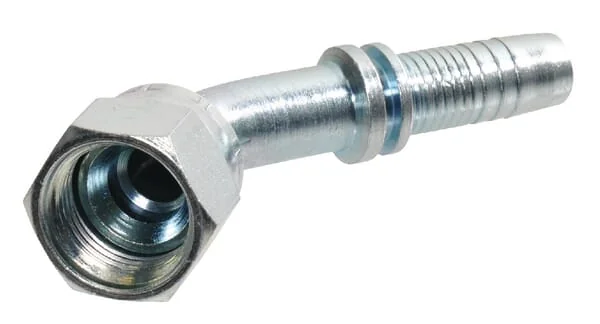

ALFAGOMMA - PA252145 - PILLAR 15/16-UNF-45°

ALFAGOMMA - PA252145 - PILLAR 15/16-UNF-45°

ALFAGOMMA - PA252145 - PILLAR 15/16-UNF-45°

ALFAGOMMA - PA252145 - PILLAR 15/16-UNF-45°

Number of products

In stock - ready to ship

Order now for delivery between 9 July and 13 July

Free shipping on orders over €60

Pay Securely with

ALFAGOMMA - PA252145 - PILLAR 15/16-UNF-45°

ALFAGOMMA - PA252145 - PILLAR 15/16-UNF-45°

€11.68

(Excl. VAT)

Price

(Excl. VAT)

€11.68

Number of products

Product Description

Application range: Flanged screw fitting Properties: Cone, metal on metal seal Technical information: Available in stainless steel on request

Alfagomma

Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand

Part Numbers

pa252145

Unit

Each

Angle

45 °

Shape

Elbow - 2 connection sides

Material

Steel

Cone angle

37 °

Product details

Cone, metal on metal seal - Flared fittings

Long description

Application range: Flanged screw fitting Properties: Cone, metal on metal seal Technical information: Available in stainless steel on request

Surface treatment

Zinc-plated White passivated

Connection 2, type

Hose end

Connection no 1 type

Thread

Connection 2, diameter

25 mm

Connection no 1 diameter

1-5/16 Inch

Connection no 1 type code

DKJ

Connection no 1 thread type

UNF

CH1Connection no 1 wrench size

38.0 mm

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Female

CConnection centre to insert distance

79,5 mm

DConnection 2, centre to end distance

24 mm

Manufacturer

Alfagomma
