Alfagomma - PGLO1630 - Insert dn16-m30x2.0-22l
Alfagomma - PGLO1630 - Insert dn16-m30x2.0-22l
Alfagomma - PGLO1630 - Insert dn16-m30x2.0-22l
Alfagomma - PGLO1630 - Insert dn16-m30x2.0-22l

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Alfagomma - PGLO1630 - Insert dn16-m30x2.0-22l

Alfagomma - PGLO1630 - Insert dn16-m30x2.0-22l

€6.08

(Excl. VAT)

Price

(Excl. VAT)

€6.08

Product Description

Application range: L-series cutting ring adapter Consists of: Swage coupling O-ring Properties: Cone, sealing cone with O-ring seal Technical information: Available in s
Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand
Alfagomma
Unit
Each
Shape
Straight - 2 connection sides
Series
22L
Includes
Insert O-ring
Material
Steel
Cone angle
24 °
Surface treatment
Zinc-plated White passivated
Connection 2, type
Hose end
Connection no 1 type
Swivel nut O-ring cone
Connection 2, diameter
16 mm

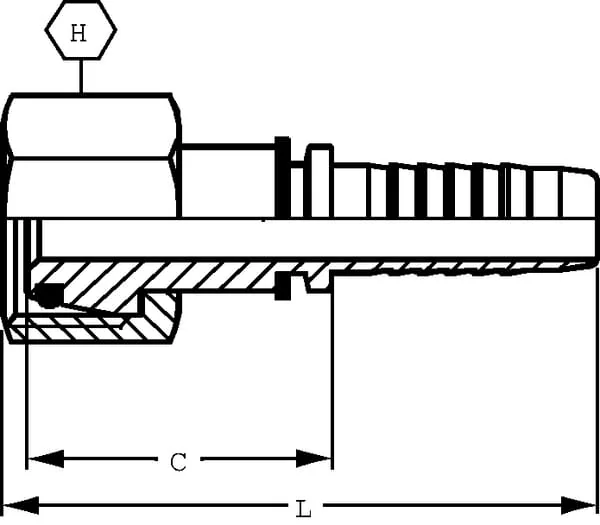

CConnection no 1 length
29 mm
Connection no 1 thread pitch
2.00 mm
HConnection no 1 wrench size
36.0 mm
Connection no 1 thread diameter
M30
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
Manufacturer
Alfagomma
