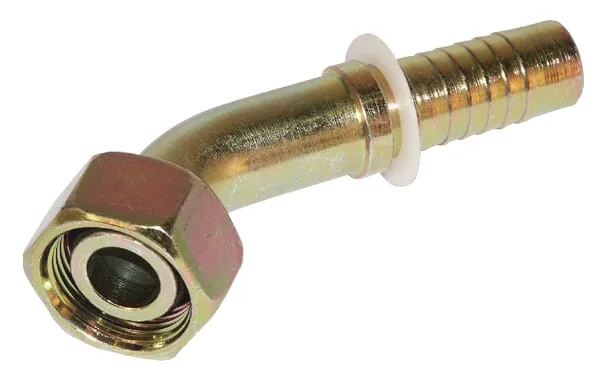

Alfagomma - PGLO202645 - Insert DN20-M26x1.5-18L-45°
Alfagomma - PGLO202645 - Insert DN20-M26x1.5-18L-45°
Alfagomma - PGLO202645 - Insert DN20-M26x1.5-18L-45°
Alfagomma - PGLO202645 - Insert DN20-M26x1.5-18L-45°

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping on orders over €60

Pay Securely with

Alfagomma - PGLO202645 - Insert DN20-M26x1.5-18L-45°

Alfagomma - PGLO202645 - Insert DN20-M26x1.5-18L-45°

€15.57

(Excl. VAT)

Price

(Excl. VAT)

€15.57

Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand
Alfagomma
Unit
Each
Angle
45 °
Shape
Elbow - 2 connection sides
Series
18L
Includes
Insert O-ring
Material
Steel
Cone angle
60 °
Product details
Cone, sealing cone with O-ring seal Cutting ring adaptors L series
Surface treatment
Zinc-plated White passivated
Connection 2, type
Hose end
Connection no 1 type
Cone
Connection 2, diameter
20 mm
Connection no 1 type code
DKOL
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
CH1Connection no 1 wrench size
32.0 mm
Connection 2, type - male/female
Male
F1Connection no 1 thread diameter
M26
Connection no 1 type - male/female
Female
CConnection centre to insert distance
67 mm
DConnection 2, centre to end distance
28 mm
Manufacturer
Alfagomma
