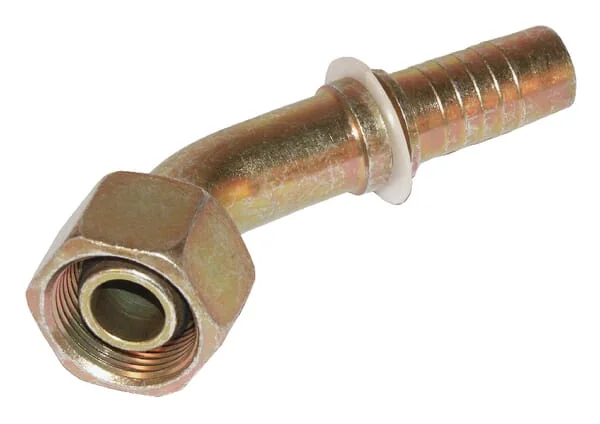

ALFAGOMMA - PGSO102445 - Column DN10-M24 x 1.5-16S-45°

SKU: alfagomma-pgso102445

ALFAGOMMA - PGSO102445 - Column DN10-M24 x 1.5-16S-45°

€8.62

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€8.62

Alfagomma
Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Brand
Alfagomma
Part Numbers
pgso102445
Unit
Each
Angle
45 °
Shape
Elbow - 2 connection sides
Series
16S
Includes
Insert O-ring
Material
Steel
Cone angle
24 °
Product details
Cone, sealing cone with O-ring seal Cutting ring adaptors S series
Surface treatment
Zinc-plated White passivated
Connection 2, type
Hose end
Connection no 1 type
Cone
Connection 2, diameter
10 mm
Connection no 1 type code
DKOS
Connection no 1 thread pitch
1.50 mm
CH1Connection no 1 wrench size
30.0 mm
Connection 2, type - male/female
Male
F1Connection no 1 thread diameter
M24
Connection no 1 type - male/female
Female
CConnection centre to insert distance
42 mm
DConnection 2, centre to end distance
19 mm
Manufacturer
Alfagomma
