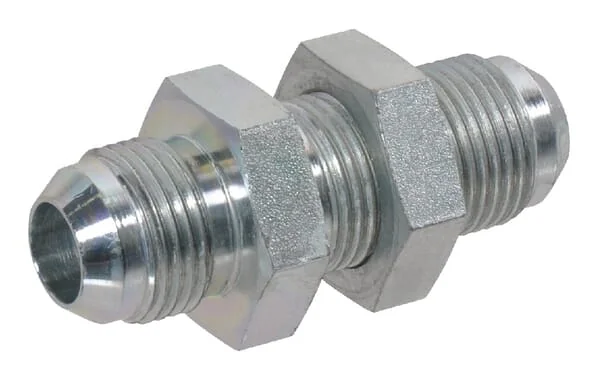

Alfagomma - RS08 - Bulkhead Adaptor 1/2 JIC

Alfagomma - RS08 - Bulkhead Adaptor 1/2 JIC

Alfagomma - RS08 - Bulkhead Adaptor 1/2 JIC

Alfagomma - RS08 - Bulkhead Adaptor 1/2 JIC

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

Alfagomma - RS08 - Bulkhead Adaptor 1/2 JIC

Alfagomma - RS08 - Bulkhead Adaptor 1/2 JIC

€5.01

(Excl. VAT)

Price

(Excl. VAT)

€5.01

Number of products

Product Description

For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI JIC

Alfagomma

Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand

Unit

Each

Shape

Straight - 2 connection sides

Cone angle

74 °

Total length

55,5 mm

Pipe diameter

5/16 Inch

Connection 2, type

Thread

Connection 2, length

31,5 mm

Connection no 1 type

Thread

Max working pressure

380 BAR

Connection no 1 length

14 mm

Connection 2, thread type

JIC

Connection no 1 thread type

JIC

Connection 2, thread diameter

1/2 Inch

Connection 2, threads per inch

20

Connection no 1 thread diameter

1/2 Inch

Connection 2, type - male/female

Male

Connection no 1 threads per inch

20

Connection no 1 type - male/female

Male

Manufacturer

Alfagomma

Similar items you might like

Alfagomma - RS09 - Bulkhead Adaptor 9/16 JIC
Alfagomma
€5.62
Alfagomma - RS12 - Bulkhead Adaptor 3/4 JIC
Alfagomma
€6.32
Alfagomma - RS14 - Bulkhead Adaptor 7/8 JIC
Alfagomma
€8.84
Alfagomma - RS17 - Bulkhead Adaptor 1-1/16 JIC
Alfagomma
€10.50
Alfagomma - RS21 - Bulkhead Adaptor 1-5/16 JIC
Alfagomma
€13.44
Alfagomma - RS26 - Bulkhead Adaptor 1-5/8 JIC
Alfagomma
€18.32
Alfagomma - RSO09 - Bulkhead Adaptor 9/16 ORFS
Alfagomma
€10.81
Alfagomma - RSO11 - Bulkhead Adaptor 11/16 ORFS
Alfagomma
€12.61
Alfagomma - RSO13 - Bulkhead Adaptor 13/16 ORFS
Alfagomma
€14.59

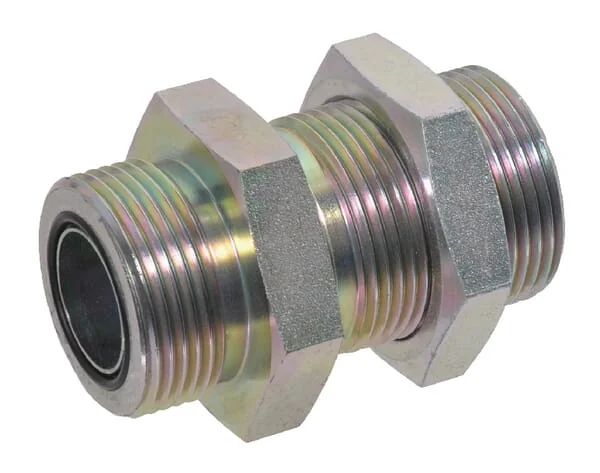

Alfagomma - RSO16 - Bulkhead Adaptor 1 ORFS
