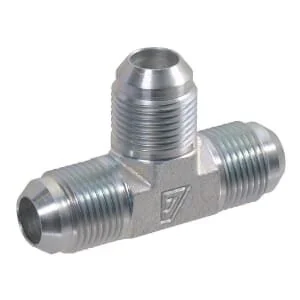

Alfagomma - T07 - T-Stud M 7/16 Unf

Alfagomma - T07 - T-Stud M 7/16 Unf

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Alfagomma - T07 - T-Stud M 7/16 Unf

Alfagomma - T07 - T-Stud M 7/16 Unf

€5.33

(Excl. VAT)

Price

(Excl. VAT)

€5.33

Number of products

Product Description

Material: steel For pipe with 37° (74°) flanged edge and hose with UNF / J.I.C. connection in accordance with SAE I 514 Connection thread on the 37° cone side is UNF in accordance with ANSI

Alfagomma

Alfagomma produces hydraulic hoses, couplings, and fittings for agricultural and industrial machinery. The brand's products are used in tractors, irrigation systems, and hydraulic-powered farm equipment. Its solutions ensure leak-free connections and high-pressure resistance in demanding farming applications. Shop more than 2,415 genuine Alfagomma spare parts.

Product Details

Brand

Unit

Each

Shape

Tee (T) - 3 connections

Material

Steel

Pipe diameter

6 mm

Technical info

For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.

Working pressure

380 BAR

Surface treatment

Galvanised

Connection 2, type

Thread

Connection 3, type

Thread

Connection no 1 type

Thread

Connection 2, thread type

UNF

Connection 3, thread type

UNF

Connection no 1 thread type

UNF

CHConnection no 1 wrench size

12.0 mm

FConnection 2, thread diameter

7/16 Inch

FConnection 3, thread diameter

7/16 Inch

FConnection no 1 thread diameter

7/16 Inch

L1Connection centre to insert distance

24 mm

Manufacturer

Alfagomma
