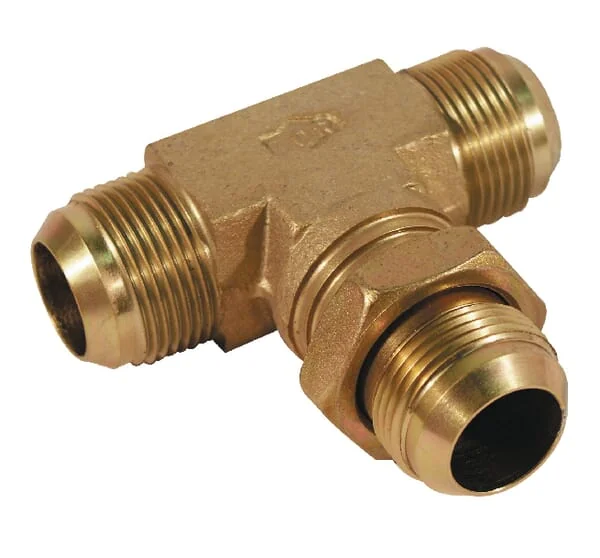

Alfagomma - TS09 - T-Stud Bulkh M 9/16 JIC

SKU: alfagomma-ts09

Alfagomma - TS09 - T-Stud Bulkh M 9/16 JIC

€15.02€12.84 (Excl. VAT)

RRP:€16.21
Save €1.19

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €11.99 incl. VAT

Pay Securely with

Price

€15.02

Part Number
TS09
Package length (mm)
60
Package width (mm)
58
Package height (mm)
23
Unit
Each
Shape
Tee (T) - 3 connections
Material
Steel
Pipe diameter
10 mm
Technical info
For standpipes 37º (74º) against cone and inserts with UNF/JIC fittings acc. SAE I 514. Cone acc. To UNF ANSI.
Working pressure
380 BAR
Surface treatment
Galvanised
Connection 2, type
Thread
Connection 3, type
Thread
Connection no 1 type
Thread
C2Connection 3, length
30
Connection 2, thread type
UNF
Connection 3, thread type
UNF
Connection no 1 thread type
UNF
CH2Connection 3, wrench size
22.0 mm
CH1Connection no 1 wrench size
17.0 mm
FConnection 2, thread diameter
9/16 Inch
FConnection 3, thread diameter
9/16 Inch
FConnection no 1 thread diameter
9/16 Inch
L1Connection centre to insert distance
28 mm
L2Connection no 1 center to end distance
43 mm
Manufacturer

Alfagomma T-connector with partition wall M 9/16 JIC, part number TS09, is a steel fitting with three UNF threaded ports and zinc coating. It is designed for riser pipes with cone and JIC fittings per SAE J514.
Alfagomma
Alfagomma is a global leader in the design and manufacture of hydraulic and industrial fluid handling systems. The company was founded in 1956 in Italy and has since grown to establish a significant international presence. With its headquarters in Italy, Alfagomma is recognized for its commitment to innovation and quality in the production of hoses, fittings, and assemblies for a wide range of applications. Alfagomma's product lines are crucial for many sectors, including agriculture, construction, mining, and general industry. The brand specializes in high-pressure hydraulic hoses, industrial hoses for various media, and a comprehensive range of fittings and quick couplings. These components are engineered to withstand demanding operational conditions, ensuring reliable fluid transfer and power transmission in machinery such as tractors, harvesters, and heavy-duty industrial equipment. Partao offers a robust selection of genuine Alfagomma spare parts, covering essential categories like Axle Seals, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners. Equipment manufacturers and end-users worldwide rely on Alfagomma products for their durability and performance. The company's extensive global network of distributors ensures that genuine parts and technical support are readily accessible, minimizing downtime and maintaining the operational efficiency of agricultural and industrial machinery. Shop more than 2,592 genuine Alfagomma spare parts.
