Amazone-ga395 - Hydraulic cylinder D-80-40-6 (Ga395)
Amazone-ga395 - Hydraulic cylinder D-80-40-6 (Ga395)

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

Amazone-ga395 - Hydraulic cylinder D-80-40-6 (Ga395)

Amazone-ga395 - Hydraulic cylinder D-80-40-6 (Ga395)

€577.38

(Excl. VAT)

Price

(Excl. VAT)

€577.38

Product Description

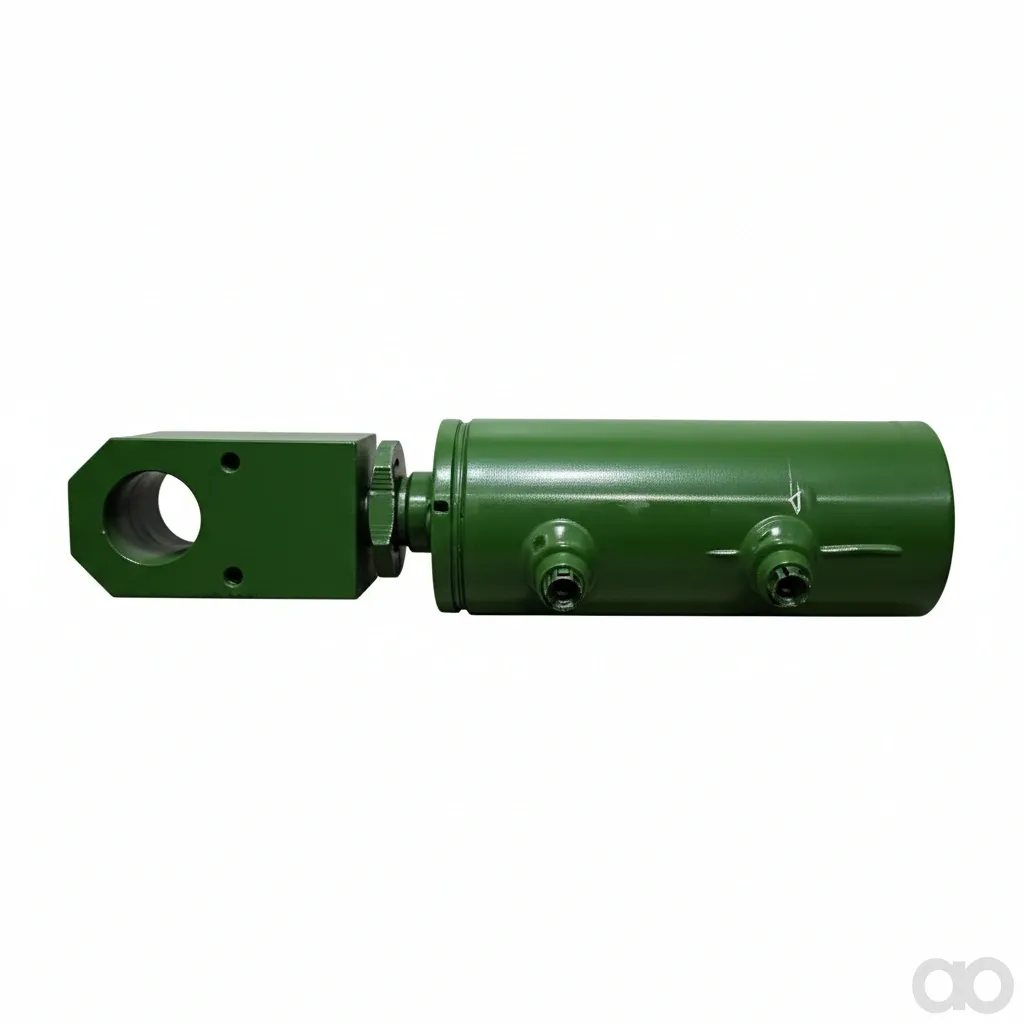

The Amazone GA395 is a genuine double-acting hydraulic cylinder, model D-80-40-6, designed for precise applications on Amazone agricultural machinery. It features an 80 mm bore diameter, a 40 mm rod diameter, and an exceptionally short 6 mm stroke. This eye-to-eye cylinder has a closed length of 200 mm and an open length of 206 mm, with 25 mm pin diameters on both eyes. It is built to withstand a maximum pressure of 200 bar and weighs 3.5 kg.
Amazone
Amazone specializes in agricultural machinery, including soil cultivation, seeding, and crop protection equipment. The brand is known for its precision technology and innovative solutions for modern farming. Its product range includes mounted and trailed implements for tractors, ensuring efficiency in field operations. Shop more than 25,012 genuine Amazone spare parts.

Product Details

Brand
Amazone
Bore Diameter (mm)
80
Rod Diameter (mm)
40
Stroke (mm)
6
Closed Length (mm)
200
Open Length (mm)
206
Pin Diameter (mm)
25
Max Pressure (bar)
200
Weight (kg)
3.5
Cylinder Type
double acting
Mounting Type
eye/eye
Quality
Genuine OEM Part
Manufacturer
Amazone
