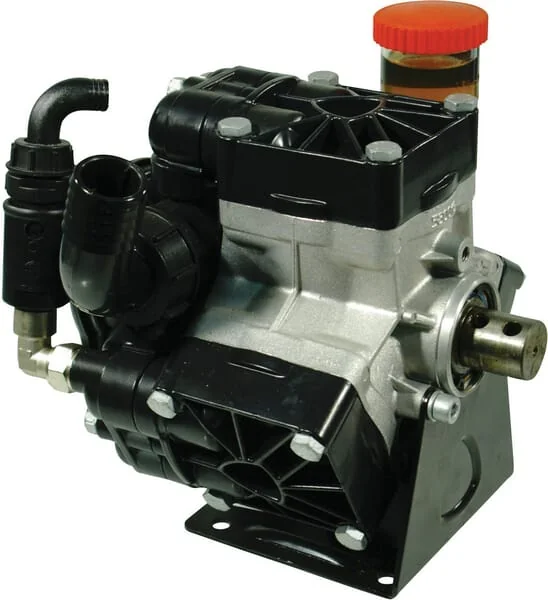

Annovi Reverberi - 16266AR - Pump AR 135 BP SP Blueflex

SKU: annovi-reverberi-16266ar

Annovi Reverberi - 16266AR - Pump AR 135 BP SP Blueflex

€926.68

(excl. VAT)
RRP:€1,474.49
Save €547.77
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€926.68

Annovi Reverberi
Annovi Reverberi is an Italian company with a long history in the manufacturing of pumps for various applications. Founded in 1958 in Modena, Italy, the company quickly established itself as a key player in the high-pressure pump sector. Over the decades, Annovi Reverberi has expanded its product range and global presence, becoming a well-recognized name in both industrial and agricultural markets. The brand is primarily known for its extensive range of high-pressure piston pumps, diaphragm pumps, and gear pumps. These components are integral to a wide array of equipment, from pressure washers and industrial cleaning systems to agricultural sprayers and mist blowers. Annovi Reverberi's engineering focuses on reliability and performance, ensuring their pumps can withstand demanding operational conditions across different sectors. At Partao, you can find a comprehensive selection of Annovi Reverberi spare parts. Our top categories for this brand include Brackets & Supports, Connecting Rods, Cylinder Heads, Hoses & Fittings, and Hydraulic Control Valves. These parts are essential for maintaining the optimal function and longevity of Annovi Reverberi pumps and the machinery they power. Over 199 genuine Annovi Reverberi spare parts are available at Partao. Equipment operators and service technicians often choose Annovi Reverberi components for their proven durability and widespread availability. The brand's commitment to quality ensures that its parts provide a reliable fit and performance, minimizing downtime for critical agricultural and industrial machinery. Its global distribution network further supports easy access to genuine spare parts, making maintenance straightforward.

Unit
Each
Power
5 kW
Width
306 mm
Height
293 mm
Length
304 mm
Weight
14 kg
Flow max.
128 l/min
Ø Intake
40 mm
Ø Outlet
25 mm
Properties
All parts that come in contact with liquid are plastic-coated. The AR DUE, AR202 and AR252 pumps are made from anodised aluminium The oil bath crank drive has a control tank (except the AR DUE) Screws with galvanised protection treatment made from Dacromet

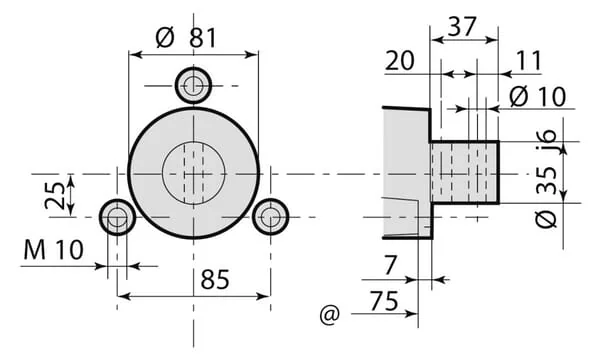

Shaft type
35mm cylindrical shaft
Consists of
Piston diaphragm pump with safety valve and air chamber (except for AR DUE, AR202 and AR252) The pumps are supplied with rubber membranes as standard
Drive shaft
universal Inch
Pressure max.
20 BAR
Rotation max.
550 r/min
Technical info
SP: pump with universal shaft as driving shaft Bp C: pump with a cardan shaft 1 3/8" 6 pieces Bp C/C: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece BpTwin: pump with through shaft: two-sided cardan shaft 1 3/8" – 6 piece – 1 3/8" – 6 piece
Temperature max.
60 °C
Application range
Semi-hydraulic low-pressure diaphragm pumps for weed control and liquid fertilisation The pumps AR DUE, AR202 and AR252 are diaphragm pumps for horticulture
Material piston diaphragms
BlueFlex
Manufacturer
Annovi Reverberi
