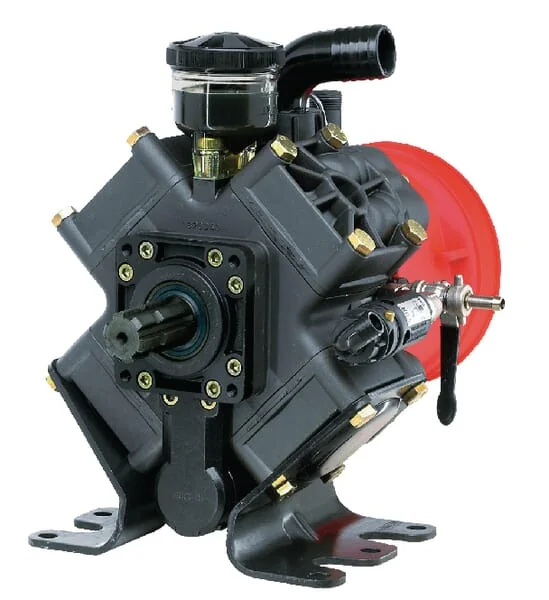

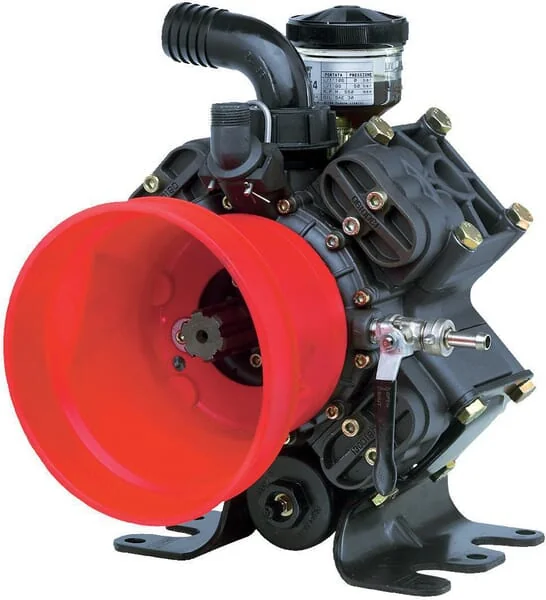

Annovi Reverberi - 16296AR - Pump AR 1064 AP C/C SGC Blueflex

SKU: annovi-reverberi-16296ar

Annovi Reverberi - 16296AR - Pump AR 1064 AP C/C SGC Blueflex

€990.69

(excl. VAT)
RRP:€1,179.38
Save €188.70

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€990.69

Anodised medium- and high-pressure pumps All parts coming into contact with liquid are anodised (the AR30 and AR50 versions are plastic-coated)
Annovi Reverberi
Annovi Reverberi is an Italian company with a long history in the manufacturing of pumps for various applications. Founded in 1958 in Modena, Italy, the company quickly established itself as a key player in the high-pressure pump sector. Over the decades, Annovi Reverberi has expanded its product range and global presence, becoming a well-recognized name in both industrial and agricultural markets. The brand is primarily known for its extensive range of high-pressure piston pumps, diaphragm pumps, and gear pumps. These components are integral to a wide array of equipment, from pressure washers and industrial cleaning systems to agricultural sprayers and mist blowers. Annovi Reverberi's engineering focuses on reliability and performance, ensuring their pumps can withstand demanding operational conditions across different sectors. At Partao, you can find a comprehensive selection of Annovi Reverberi spare parts. Our top categories for this brand include Brackets & Supports, Connecting Rods, Cylinder Heads, Hoses & Fittings, and Hydraulic Control Valves. These parts are essential for maintaining the optimal function and longevity of Annovi Reverberi pumps and the machinery they power. Over 199 genuine Annovi Reverberi spare parts are available at Partao. Equipment operators and service technicians often choose Annovi Reverberi components for their proven durability and widespread availability. The brand's commitment to quality ensures that its parts provide a reliable fit and performance, minimizing downtime for critical agricultural and industrial machinery. Its global distribution network further supports easy access to genuine spare parts, making maintenance straightforward.

Unit
Each
Power
9.8 kW

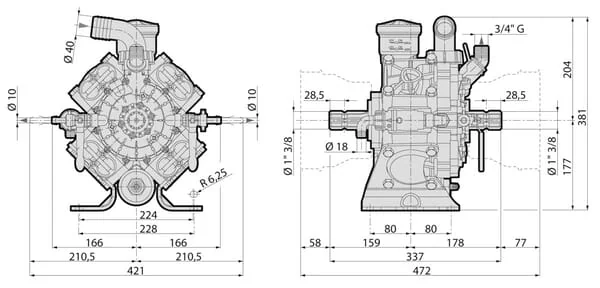

Width
421 mm
Height
381 mm
Length
337 mm
Weight
22 kg
Benefits
Long service life
Flow max.
105 l/min
Ø Intake
40 mm
Ø Outlet
G 3/4 Inch
Properties
The crank drive case runs in an oil bath, with a control tank All screws are zinc-plated
Shaft type
1 3/8" (6) + 1 3/8" (6)
Consists of
The pumps are equipped with rubber membranes as standard A safety valve is fitted as standard (except the AR303, AR403 and AR503) The protective cap is supplied with C/SP pumps as standard
Drive shaft
2x 1 3/8 Inch
Pressure max.
50 BAR
Rotation max.
550 r/min
Technical info
SP: pump with universal shaft as driving shaft C: pump with a cardan shaft 1 3/8" 6 pieces C/C: pump with through shaft: double-sided cardan shaft 1 3/8" – 6 pieces – 1 3/8" – 6 pieces C/SP: pump with through shaft: 1 3/8" - 6 pieces, universal shaft
Temperature max.
60 °C
Application range
For sprayers in fruit and wine growing (tall-growing crops)
Material piston diaphragms
BlueFlex
Manufacturer
Annovi Reverberi
