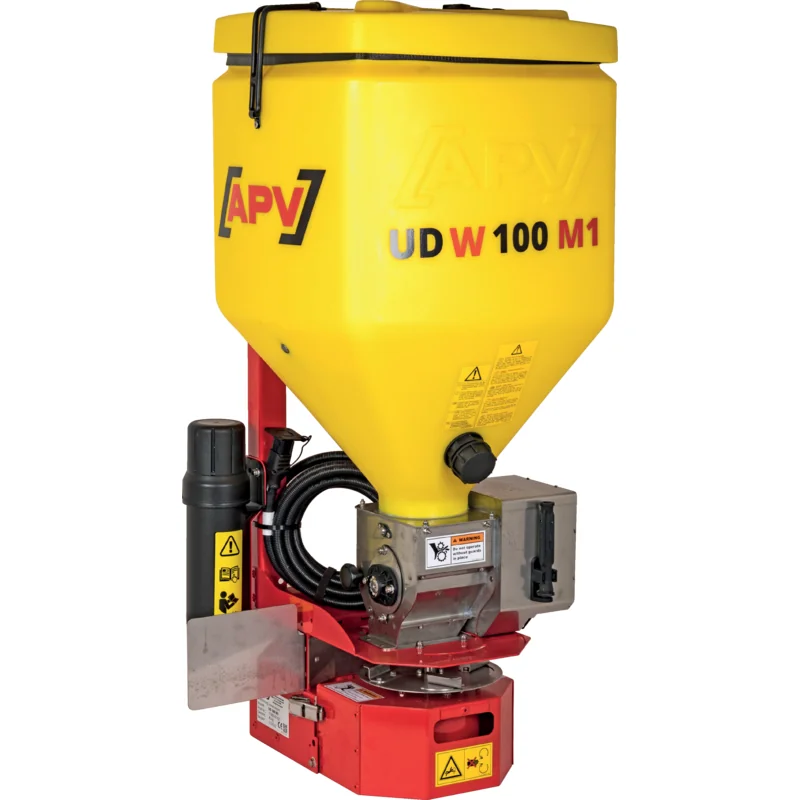

APV - UDW100 - Universal Dispenser

The universal spreader UDW 100 M1 has a dosing unit made of stainless steel, which is ideally suited for professional winter service applications thanks to a precise dosing shaft (seeding shaft). The stainless steel design guarantees the best possible protection against corrosion, especially when using road salt. Its fully electronic control allows both the working width and the spreading quantity to be conveniently adjusted from the driver's seat while driving. The spreader UDW 100 M1 is compatible with various vehicle types such as tractors, pick-ups, flatbed trucks, and off-road vehicles. Small to large quantities precisely dosable by means of a Flex dosing shaft with 80 mm diameter Chain-driven agitator Compact design and easy mounting option Speed-adapted quantity output (with sensor technology - usable only with control module 5.2) Spreading of salt, fine-grained grit or mixtures thereof (possible without conversion) Spreading of corrosive spreading material (fertilizer) is possible Easy calibration test (with spreader disc stationary and folded away) Spreading width: 1 to 6 meters Container: 105 liters capacity (approx. 120 kg salt) Scope of delivery: Complete device in stainless steel Electrically regulated dosing shaft Electrically driven spreading disc (stainless steel) Agitator with chain drive Electronic control module 5.2 with steel bracket for mounting in the driver's cabin Calibration bag Complete wiring Residual emptying opening Top link attachment Counter plate The control module 5.2 has the following functions: Speed-dependent regulation of the spreading quantity Headland management (in conjunction with lift sensor) Option for machine sensor technology (pressure monitor, fill level sensor) Spreading quantity electronically adjustable (during operation) Automatic calibration test function (weigh only!) Emptying function Total hours and daily hour counter Total hectares and daily hectare counter Choice of different languages Choice between different units of measurement (metric, imperial) Calibration test & display in kg/ha Speed calibration Pre-dosing function Option for calibration button Display of operating voltage all common sensors can be used Spreading width: 1 to 6 m Spreading quantity: up to 20 kg salt per minute Dimensions: Height 110 cm, Width 55 cm, Depth 55 cm Container size: 105 l (approx. 120 kg salt) The 12V motor can optionally be connected to the vehicle's electrical system or directly to the vehicle's battery.
