ARAG - 453016A77 - Ball Valve 3-Way 2\ 10BAR"

OEM Quality

SKU: arag-453016a77

ARAG - 453016A77 - Ball Valve 3-Way 2\ 10BAR"

€59.54

(excl. VAT)
RRP:€61.29
Save €1.75

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€59.54

Arag
Arag manufactures lubrication and fluid management systems for agricultural machinery. The brand produces oil pumps, filters, and cooling systems for tractors and harvesters. Its solutions enhance equipment longevity and efficiency in farming operations. Shop more than 2,546 genuine Arag spare parts.

Brand
Arag
Part Numbers
453016a77
Type
Manual valve
Unit
Each
Properties
The housing is made from fibreglass-reinforced polypropylene Teflon® seal seats Screws and bolts made from stainless steel Ball made from fibreglass-reinforced polypropylene or Inox Seals made from EPDM (for ball made from PP); or Viton® (for Inox ball)

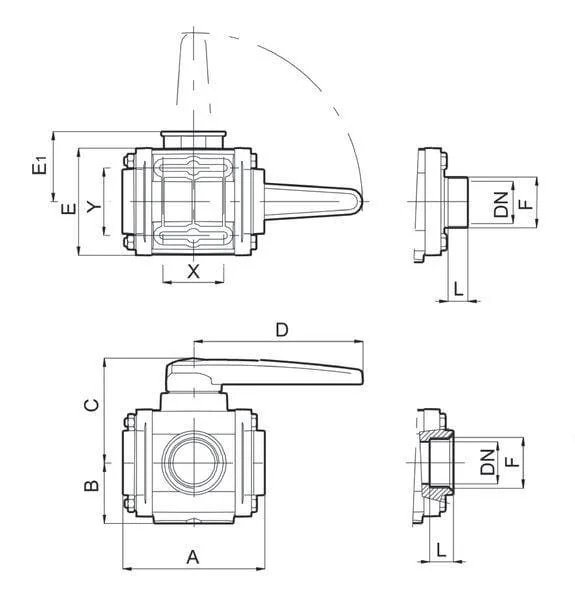

ATotal length
150 mm
Ball material
Polypropylene
Housing width
109 mm
Technical info
Lever 90° adjustable The handle is rounded off for safe and comfortable handling The "F" and "M" abbreviations in the properties are female (internal screw thread) and male (external screw thread) respectively
Connection type
Thread
Number of ports
3
Number of positions
3
Max working pressure
10 BAR
Connection thread type
BSP
Nominal inner diameter
50 mm
LConnection thread length
28 mm
Connection thread diameter
2 Inch
EAN
8026834091115
Manufacturer
Arag
