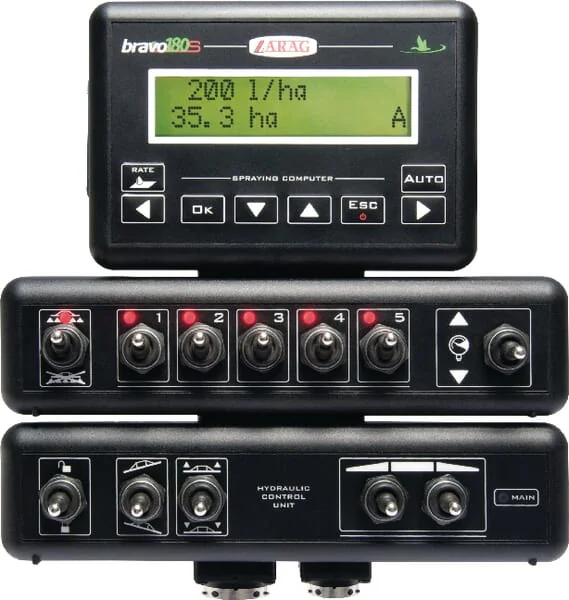

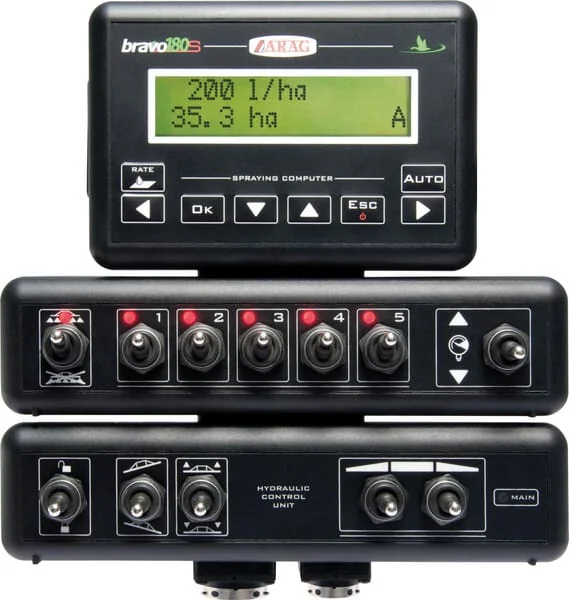

Arag - 467180553 - Bravo 180S Computer 5 Sections + 5 Hydraulics

OEM Quality

SKU: arag-467180553

Arag - 467180553 - Bravo 180S Computer 5 Sections + 5 Hydraulics

€2,329.42€1,990.96 (Excl. VAT)

RRP:€2,722.00
Save €392.51

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €11.99 incl. VAT

Pay Securely with

Price

€2,329.42

Brand
Part Number
467180553
Fits

Arag

Package length (mm)
375
Package width (mm)
285
Package height (mm)
235
Pros
Extensive adjustments options Built-in test capabilities
Type
5 sections
Unit
Each
Includes
Spray computer Assembly kit Manual Speed sensor Mounting cable for valves and sensors Power cable
Supply voltage
12 V
Technical info
Automatic rate control Flow based control Controles 5 sections Temporary increase or decrease application rate
Product details
Illuminated alphanumeric LCD display 2*16 characters Splashproof Supported languages: Italian, English, French, Spanish, German, Portuguese, Polish, Russian EU or US units (l/gal - km/h/MPH) Nutrition: 11-14Vdc Power supply max 10A protection Current consumption: 150mA (computer only) LxWxH: 222x182x86mm Temperature: 0°C to +60°C Sensor input: max 2000Hz Analogue input: 4*20mA Computer memory storage options: 3 wheel constants 4 dosages 4 fields 5 different spray nozzles 2 section control options (section valves: 2 or 3-way): Mode P; the section switches go above master on/off Mode M; the master on/off goes above the section switches (normal setting)
Long description
The Bravo 180 is a spray computer specifically for crop sprayers. Set the required dosage and the computer will automatically dose according to the driving speed. It is a compact and light spray computer with extensive possibilities. It is possible to choose between a long or short spray menu and manual or automatic spray control. In addition, this spray computer can also control a foam marker. The spray boom, wheel constant, wheel selection, language, flow constant, pressure sensor and up to 5 sections can be set on the computer. The monitor shows driving speed, pressure, area covered, amount of liquid sprayed, tank level, flow rate, distance, time and field number.
Numbers of valves
5
Cable length valves
6 m
Number of hydraulic functions
5
Cable length hydraulic functions
10 m
EAN
8026834317765
Manufacturer

The ARAG 467180553 BRAVO 180S computer is an advanced control unit designed for agricultural sprayers. It manages up to 5 boom sections and 5 hydraulic functions, providing precise control over spraying operations. This genuine ARAG component ensures accurate application, optimizing efficiency and reducing waste. It is a key part of modern spraying systems, offering reliable performance and integration.
