Attachments & Lift

Hydraulic Systems

Hydraulic Control Valves

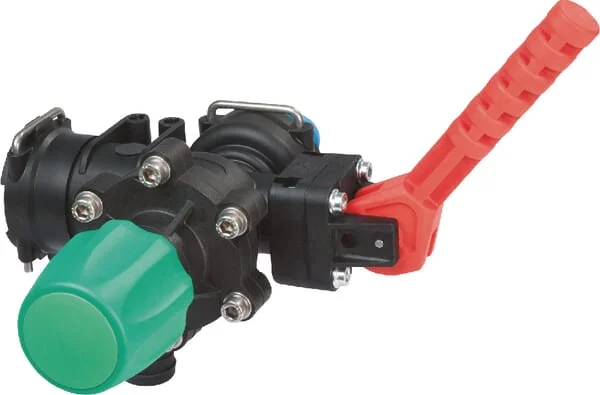

Arag - 471T202 - Manual Control Valve

Arag - 471T202 - Manual Control Valve

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

Arag - 471T202 - Manual Control Valve

Arag - 471T202 - Manual Control Valve

€126.28

(Excl. VAT)

Price

(Excl. VAT)

€126.28

Number of products

Arag

Arag manufactures lubrication and fluid management systems for agricultural machinery. The brand produces oil pumps, filters, and cooling systems for tractors and harvesters. Its solutions enhance equipment longevity and efficiency in farming operations. Shop more than 2,547 genuine Arag spare parts.

Product Details

Brand

T

T5 °

Unit

Each

Properties

Housing made from fibreglass-reinforced nylon Inner parts made from Delrin® and Inox steel AISI 303 Viton® seals Are equipped with hose nipples for the process

Consists of

Composed of manually operated main switch valve with adjustable maximum-pressure valve

P max. (bar)

20 BAR

Application range

Main shift valve: Regulates the opening and closing of the main control valve and thus the supply of liquid through the system (valve open: liquid flows to the circuit in use; valve closed: liquid flows to the tank) Pressure relief valve: Allows excess liquid to escape when it reaches the programmed maximum pressure (the valve is manually adjustable) For fittings in modular construction

Max. flow (Main control valve)

150 l/min

Hose Ø bypass (Main control valve)

30 mm

Hose end Ø intake (Main control valve)

25 mm

Manufacturer

Arag

Similar items you might like

Arag - 473000050 - Adaptor Male 1 1/4" External Thread
Arag
€5.19
Arag - 473000052 - Adaptor Male 1 1/4" Internal Thread
Arag
€5.19
Arag - 473000053 - Adaptor M. 1 1/4" NPT Int. Thread
Arag
€5.19
Arag - 473000056 - Adapter 473/t5
Arag
€5.81
Arag - 473000060 - Adaptor M. 1 1/2" Ext. Thread
Arag
€5.26
Arag - 473000066 - Adaptor 473/t6
Arag
€5.19

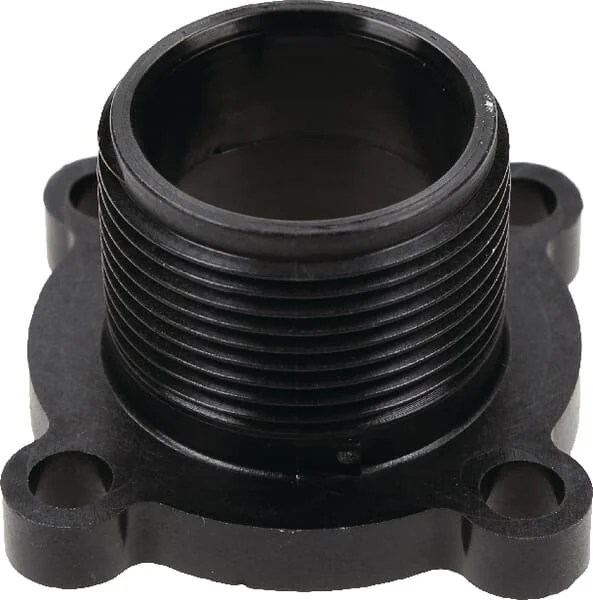

Arag - 473000150 - Adaptor F. 1 1/4" Ext. Thread
Arag
€5.26

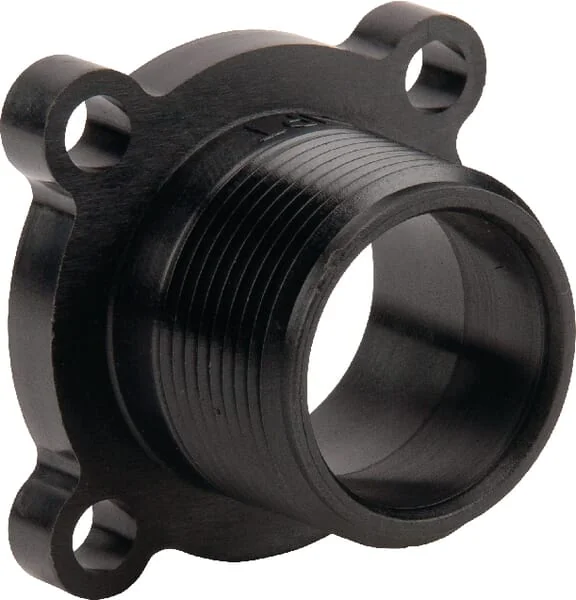

Arag - 473000151 - Adaptor F. 1 1/4"NPT Ext. Thread
