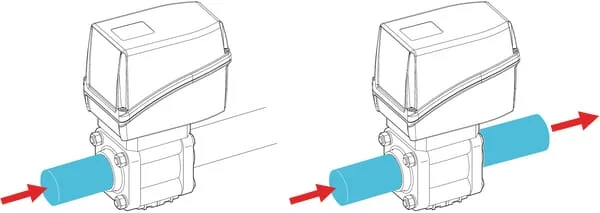

Arag - 853K05A66 - Electric 2-Way Ball Valve 1 1/2"

OEM Quality

SKU: arag-853k05a66

Arag - 853K05A66 - Electric 2-Way Ball Valve 1 1/2"

€413.95€353.80 (Excl. VAT)

RRP:€499.19
Save €85.21
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€413.95

Brand
Arag
Unit
Each
FThread
1 1/2 F Inch
Voltage
12 V
Properties
Ball positioning seats made from Teflon Internal O-rings made from viton Clamping devices for flange mounting made from stainless steel, protected by the valve housing
Ball material
Stainless steel 316
Response time
2,3 s
LLength nipple
25 mm
Technical info
The abbreviation "A" in the item number means: female thread on both sides; "E" means male thread on both sides NO: normally open The valves are designed for the 3-wire function (++-), a supply with 12Vdc: As long as the controller is fed, the valve rotates and moves into position, in which it interrupts the power consumption independently. If the power supply is interrupted, the gear motor brings the ball back to its original position The valves are also compatible with the 2-wire controllers: where the opening/closing movement by reversing the supply polarity is achieved with a double diverter
DNNominal diameter
40 mm
EWidth pass through
91 mm
ALength pass through
128 mm
Max. working pressure
10 BAR
CHeight from top to center
178 mm
YWidth between fixing holes
49 mm
XLength between fixing holes
40 mm
BHeight from bottom to center
52 mm
EAN
8026834395329
Manufacturer
Arag

Arag
Arag manufactures lubrication and fluid management systems for agricultural machinery. The brand produces oil pumps, filters, and cooling systems for tractors and harvesters. Its solutions enhance equipment longevity and efficiency in farming operations. Shop more than 4,168 genuine Arag spare parts.
