Home
Attachments & Lift
Hydraulic Systems
Hydraulic Control Valves

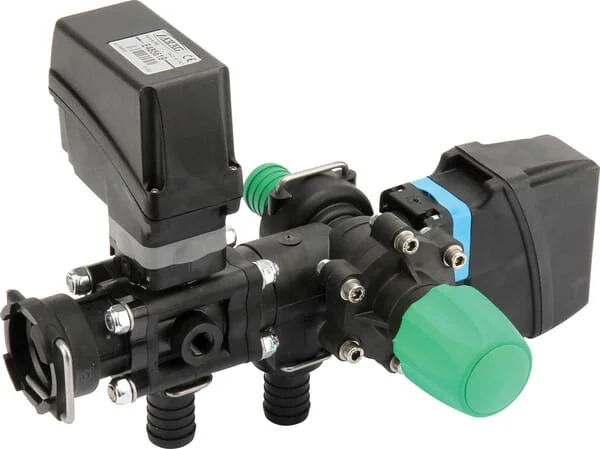

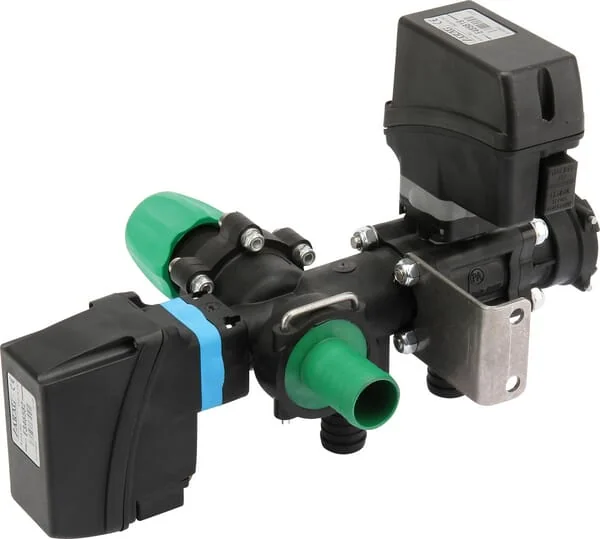

Arag - 871520Q50 - Main Valve
Arag - 871520Q50 - Main Valve
Arag - 871520Q50 - Main Valve
Arag - 871520Q50 - Main Valve

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping

Pay Securely with

Arag - 871520Q50 - Main Valve

Arag - 871520Q50 - Main Valve

€360.19

(Excl. VAT)

Price

(Excl. VAT)

€360.19

Arag
Arag manufactures lubrication and fluid management systems for agricultural machinery. The brand produces oil pumps, filters, and cooling systems for tractors and harvesters. Its solutions enhance equipment longevity and efficiency in farming operations. Shop more than 2,547 genuine Arag spare parts.

Product Details

Brand
Arag
T
T5 °
Unit
Each
Voltage
12 V
Flow max.
60 (3 bar) l/min
Components
8710502; 8630022S
Designed for
Bravo / Delta
P max. (bar)
20 BAR
Technical info
Comprising main valve 871 502 (with 25 mm hose connection 473 001.A25; 35 mm- 471 202.A45) and proportional control valve serie 863; with 19 mm hose connection 463 001.A19.
Power consumption
1 A
Max. flow (Main control valve)
150 l/min
Max. flow (Proportional valve)
60 l/min
Response time (Main control valve)
0.6 s
Response time (Proportional valve)
7 s
Hose Ø bypass (Main control valve)
30 mm
Hose Ø bypass (Proportional valve)
13 mm
Hose end Ø intake (Main control valve)
25 mm
Manufacturer
Arag

Similar items you might like

  • Arag

    Arag - 871520R50 - Main Valve Unit T5f 024s

    Arag

    €347.83

  • Arag

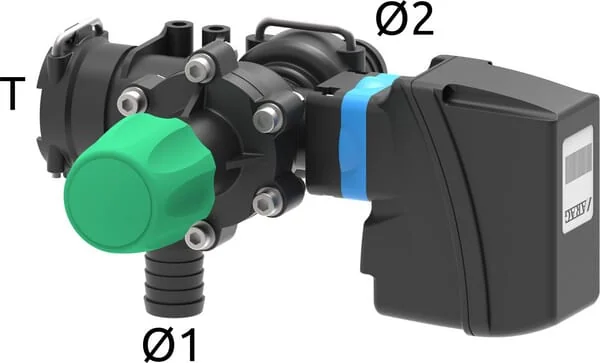

    Arag - 871T502 - Electric Main Control Valve With Adjustable Maximum Pressure Valve And T5 Fork Coupling

    Arag

    €209.19

  • Arag

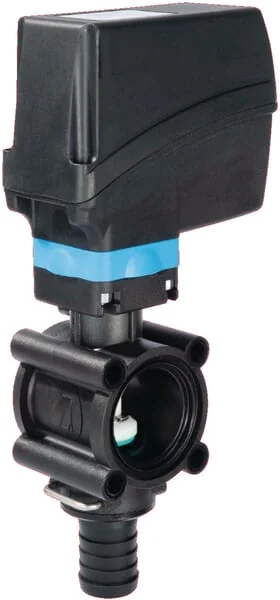

    Arag - 8730001 - Electric Section Valve
