B-Plus - B20100-CCM-000-B013 - ISOBUS

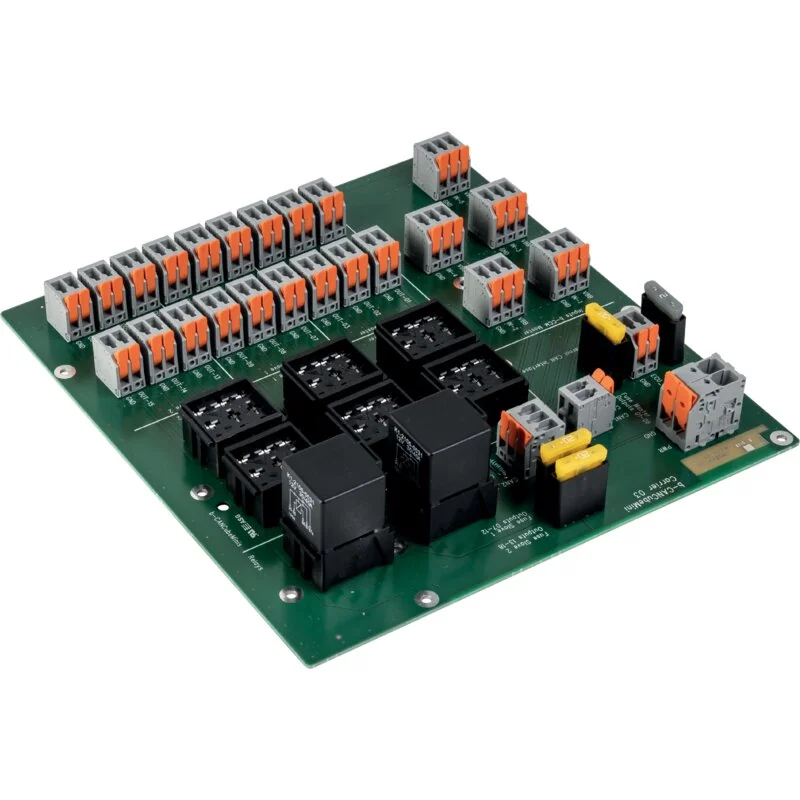

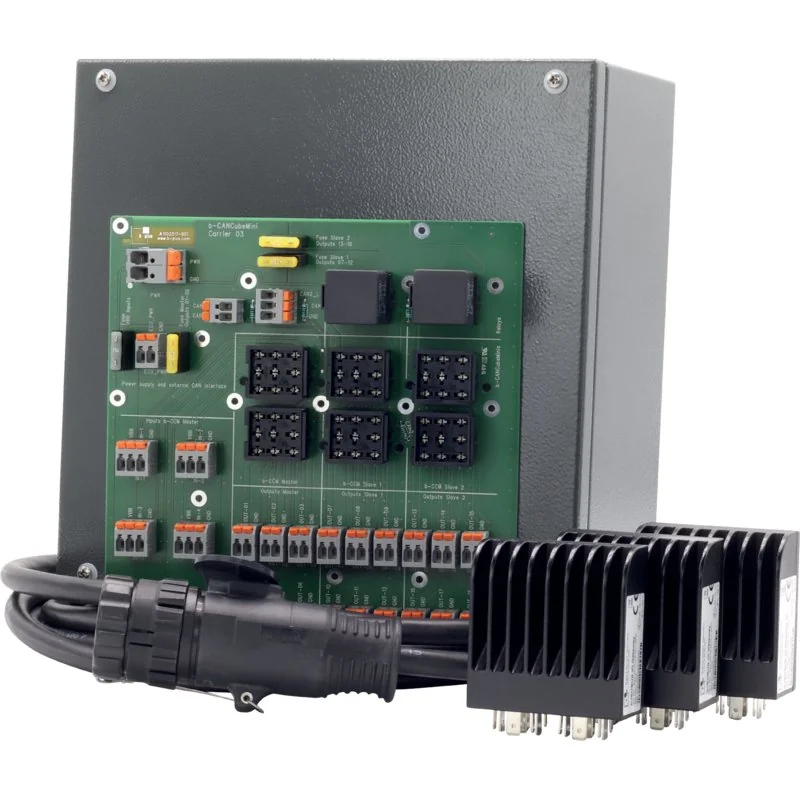

ISOBUS Retrofit: b-ISOBUS IO Gateway The b-ISOBUS IO-Gateway offers a simple way to integrate your agricultural implement into the ISOBUS world. On any ISO-VT (Virtual Terminal), 5 configurable inputs and 6 outputs can be displayed, operated, and completely configured with the help of a small controller (Master). The AEF-certified gateway offers all VT and AUX-N client functionalities. Optionally, the b-ISOBUS IO-Gateway is also available with Task-Controller-Client functionality Section Control. If required, up to 3 expansion modules (Slave) with 6 sections each can be added (a total of up to 24 sections can then be realized). The accessories allow for easy mounting on the implement. From the ISOBUS connection cable to the robust, vibration-damped housing, everything is available from a single source. Component Configurations Variant A, 6 outputs / sections (without Section Control 00570001, with Section Control 00570002) ISOBUS IO Gateway Base Module 00570001 ISOBUS IO Gateway TC-Section Control 00570002 ISOBUS Cable 8-pin 00131148 ISOBUS Connector 00131143 ISOBUS CAN-Board Cube Mini Carrier 01 00570003 Housing H100 164 x 280 x 120 mm 00570007 Variant B, 6 outputs / sections (without Section Control 00570001, with Section Control 00570002) ISOBUS IO Gateway Base Module 00570001 ISOBUS IO Gateway TC-Section Control 00570002 ISOBUS Cable 8-pin 00131148 ISOBUS Connector 00131143 ISOBUS CAN-Board Cube Mini Carrier 01 00570003 Housing H400 290 x 280 x 120 mm 00570008 Variant C, 12 sections, of which max. 6 can be used as configurable outputs ISOBUS IO Gateway TC-Section Control 00570002 ISOBUS IO Gateway CAN-Slave 00570009 ISOBUS Cable 8-pin 00131148 ISOBUS Connector 00131143 ISOBUS CAN-Board Cube Mini Carrier 02 00570004 Housing H400 290 x 280 x 120 mm 00570008 Variant D, 18 sections, of which max. 6 can be used as configurable outputs ISOBUS IO Gateway TC-Section Control 00570002 ISOBUS IO Gateway CAN-Slave 2 x 00570009 ISOBUS Cable 8-pin 00131148 ISOBUS Connector 00131143 ISOBUS CAN-Board Cube Mini Carrier 03 00570005 Housing H400 290 x 280 x 120 mm 00570008 Variant E, 24 sections, of which max. 6 can be used as configurable outputs ISOBUS IO Gateway TC-Section Control 00570002 ISOBUS IO Gateway CAN-Slave 3 x 00570009 ISOBUS Cable 8-pin 00131148 ISOBUS Connector 00131143 ISOBUS CAN-Board Cube Mini Carrier 04 00570006 Housing H400 290 x 280 x 120 mm 00570008
