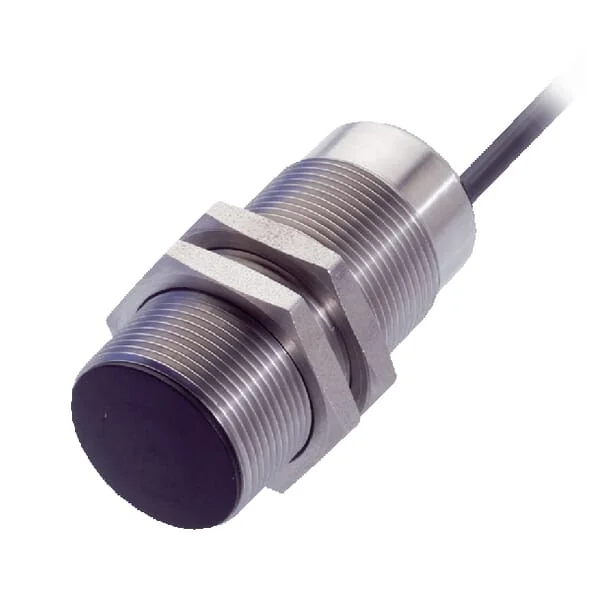

Balluff - BCS00LL - Proximity Switch, Capacitive

Balluff - BCS00LL - Proximity Switch, Capacitive

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

Balluff - BCS00LL - Proximity Switch, Capacitive

Balluff - BCS00LL - Proximity Switch, Capacitive

€99.27

(Excl. VAT)

Price

(Excl. VAT)

€99.27

Number of products

Balluff

Balluff provides industrial sensors and automation components used in agricultural machinery and equipment. The brand specializes in position sensors, RFID systems, and hydraulic measurement tools for precision farming applications. Its products enhance the efficiency and reliability of automated agricultural processes. Shop more than 128 genuine Balluff spare parts.

Product Details

Brand

Unit

Each

Cable length

2 m

Thread pitch

1.00 mm

Voltage type

DC

Supply voltage

10-30 V

Technical info

Operating voltage UO : 10…30 V DC Voltage drop Ud at Ie : ≤ 1.5 V Rated insulation voltage Ui (protection class): 75 V DC Output current max.: 100 mA No-load supply current I0 max.: ≤ 15 mA Reverse polarity/short-circuit protected: Yes/Yes Temperature drift of sn (–5°...+55°C): 20 % Ambient temperature range Ta: –25…+85 °C Switching frequency f : 100 Hz Power indicator: Green LED Output function indicator: Yellow LED Degree of protection as per IEC 60529: IP 67

Thread diameter

M18

Switching distance

15 mm

Normal contact type

No

Switching frequency

100 Hz

Manufacturer Product ID

BCS00LL

Type of switching output

PNP

Type of electric connection

Cable

Max. output current at protected output

100 mA

Manufacturer

Balluff
