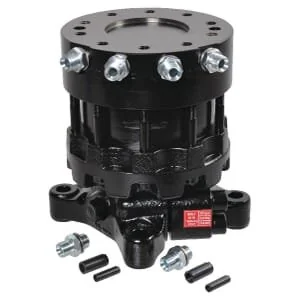

Baltrotors - GR55FF - Baltrotors Rotator 45kN flange Ø140
Baltrotors - GR55FF - Baltrotors Rotator 45kN flange Ø140

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping

Pay Securely with

Baltrotors - GR55FF - Baltrotors Rotator 45kN flange Ø140

Baltrotors - GR55FF - Baltrotors Rotator 45kN flange Ø140

€1,868.08

(Excl. VAT)

Price

(Excl. VAT)

€1,868.08

Product Description

The Baltrotors GR55FF is a high-performance genuine flange rotator designed for demanding forestry and material handling applications. This robust rotator offers a substantial 55 kN (5500 kg) lifting capacity and features continuous rotation for optimal operational flexibility. It is equipped with a Ø140 mm flange, secured by 6 bolt holes (Ø17 mm) arranged on a Ø140 mm bolt circle, and a Ø50 mm lower connection. Engineered for durability, it can withstand a maximum pressure of 250 bar, delivering a powerful 1600 Nm of torque at this pressure. The GR55FF is built to handle significant loads, with a static axial load capacity of 55 kN, a dynamic axial load of 25 kN, and a radial load of 25 kN, ensuring reliable performance in heavy-duty environments.
Baltrotors

Product Details

Brand
baltrotors
Height mm
280
Weight kg
30
Body diameter mm
180
Max pressure bar
250
Flange bolt holes
6
Flange diameter mm
140
Max radial load kn
25
Lifting capacity kn
55
Torque at 250 bar nm
1600
Max axial load static kn
55
Max axial load dynamic kn
25
Flange bolt hole diameter mm
17
Lower connection diameter mm
50
Manufacturer
baltrotors

Similar items you might like

  • Baltrotors

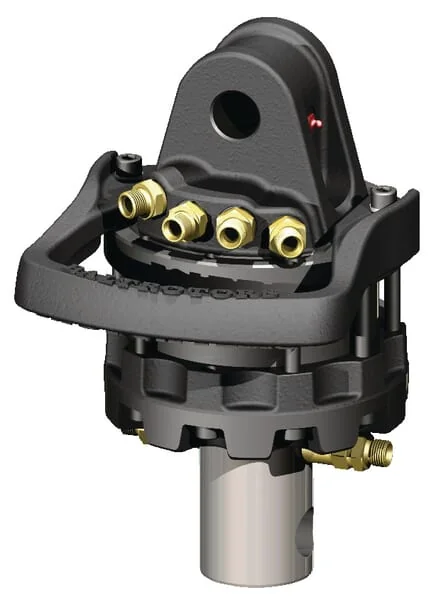

    Baltrotors - GR55M - Baltrotors Rotator 55kN Shaft 69mm Hole 30mm

    Baltrotors

    €690.59

  • Baltrotors

    Baltrotors - GR6069 - Baltrotors Rotator 60kN Shaft 69mm Hole 30mm

    Baltrotors

    €991.90

  • Baltrotors

    Baltrotors - GR6078 - Baltrotors Rotator 60kN Shaft 78mm Hole 35mm

    Baltrotors

    €973.43

  • Baltrotors

    Baltrotors - GR60DB - Baltrotors Rotator 60kN Shaft 68mm Hole 30mm

    Baltrotors

    €946.23

  • Baltrotors

    Baltrotors - GR9104AFD - Baltrotors Seal Kit for GR104/105/110

    Baltrotors

    €193.53

  • Baltrotors

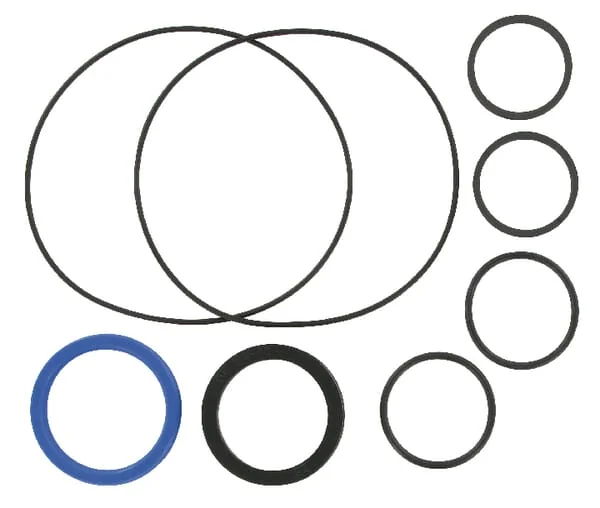

    Baltrotors - GR910AFD - Baltrotors Sealing Kit GR10 for Old Models Before 2014 and New Models

    Baltrotors

    €53.49

  • Baltrotors

    Baltrotors - GR912AFD - Baltrotors Sealing Set for GR12S/GR16S

    Baltrotors

    €212.79

  • Baltrotors

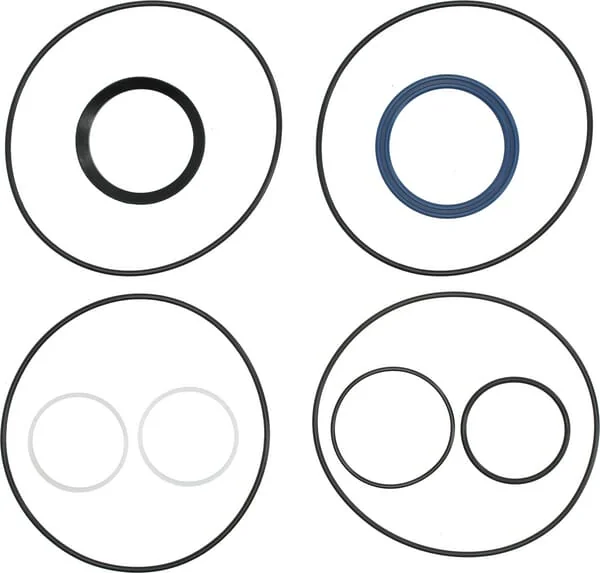

    Baltrotors - GR930AFD - Baltrotors Seal Kit for GR30
