Battioni Pagani - 6080200522 - Revoblock 10-200 MY21 With Motor

Name: Battioni Pagani - 6080200522 - Revoblock 10-200 MY21 With Motor
Brand: Battioni Pagani
SKU: battioni-pagani-6080200522
Price: 4329.89 EUR
Availability: InStock

SKU: battioni-pagani-6080200522

€4,329.89€3,700.76 (Excl. VAT)

RRP:€5,903.29

Save €1,573.23

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,329.89

Brand

Battioni Pagani

Unit

Each

BWidth

144 mm

Weight

65 kg

EHeight

500 mm

Properties

Swivel joint: Wear resistant crown wheel and gear Rotates by 360º Very compact design Automatic brake system in the event of a hydraulic motor failure Easy lubrication Hydraulic motor: Temperature range (°C) oil: -30 to +60 Max. working pressure (bar): 165 Max. oil capacity (l/min): 60

ØDiameter

200 mm

Torque max.

10000 N·m

Run time max.

2 min

CBore diameter

15 mm

Number of holes

Operating torque

8000 N·m

Application range

This rotary coupling enables a suction arm to be rotated in a small space, for example

Temperature range

-15 +80 °C

Gear ring material

BRAL

Number of teeth (Z)

AFlange diameter (mm)

350 mm

DCenter hole distance

320 mm

Max. working pressure

6 BAR

Replaceable gear ring

Yes

Manufacturer

Battioni Pagani

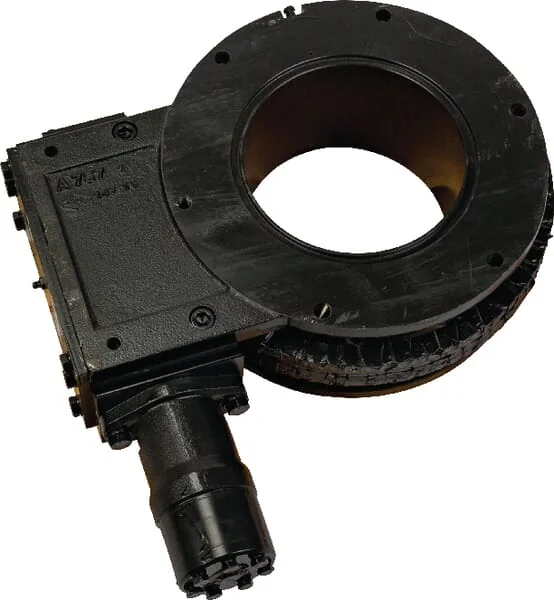

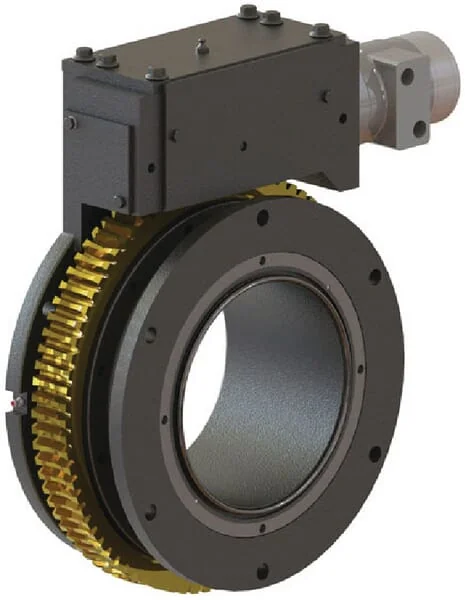

The Battioni Pagani Revoblock 10-200 MY21 with motor, part number 6080200522, is a hydraulic rotary coupling with an integrated hydraulic motor and automatic brake system. It features a wear-resistant gear system, an exchangeable tooth ring and is designed for rotation of a suction arm.

Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment. Shop more than 1,909 genuine Battioni Pagani spare parts.
