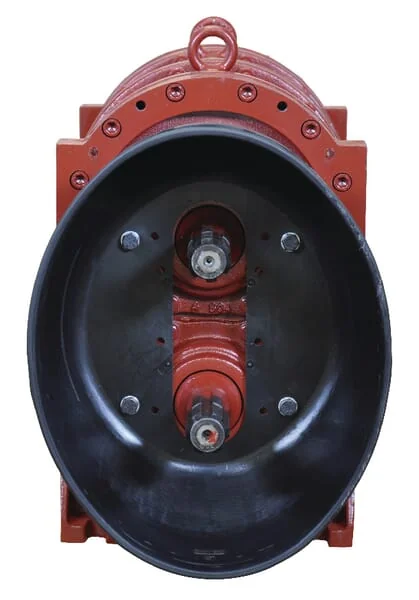

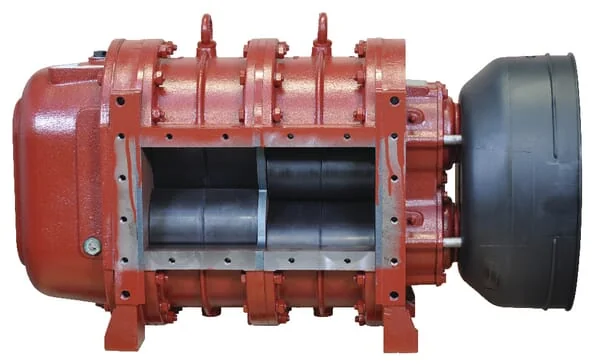

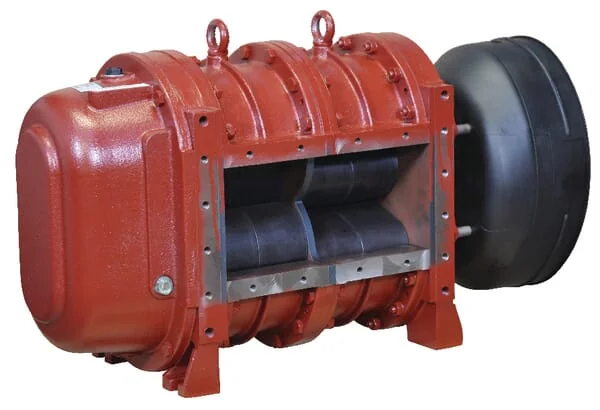

Battioni Pagani - BR160D - BR Pump 172m³/h Battioni Pagani
Battioni Pagani - BR160D - BR Pump 172m³/h Battioni Pagani
Battioni Pagani - BR160D - BR Pump 172m³/h Battioni Pagani
Battioni Pagani - BR160D - BR Pump 172m³/h Battioni Pagani
Battioni Pagani - BR160D - BR Pump 172m³/h Battioni Pagani
Battioni Pagani - BR160D - BR Pump 172m³/h Battioni Pagani
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Battioni Pagani - BR160D - BR Pump 172m³/h Battioni Pagani

Battioni Pagani - BR160D - BR Pump 172m³/h Battioni Pagani

€4,245.78

(Excl. VAT)

Price

(Excl. VAT)

€4,245.78

Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Unit
Each
BWidth
260 mm
Weight
163 kg
ALength
695 mm
MHeight
399 mm
Flow max.
2875 l/min
Connection
BR 160 KIT
Properties
The BR-type displacement pumps can be operated both clockwise and anti-clockwise
Consists of
Including CE-compliant PTO shaft guard Without suction and pressure flange
P max. (bar)
8 BAR
Rotation max.
540 r/min
HBore diameter
15 mm
FDistance holes
378 mm
CHeight with eye
429 mm
Application range
The BR-series displacement pumps from Battioni Pagani have been designed to pump slurry according to the displacement principle, for example from the cellar to the silo
Drive shaft (inch)
1 3/8 Inch
IDistance bore width
190 mm
ODistance center shafts
136 mm
GDistance 2nd bore to end
141 mm
RDistance pump housing to end
157 mm
KDistance center shaft to side
130 mm
NTotal length with safety shield
737 mm
PDistance pump housing end shaft
192 mm
Power requirement (max. pressure)
43 kW
LDistance underside to center shaft
128 mm
XDistance underside to center 2nd shaft
264 mm
EDistance end of shaft to mid first bore
176 mm
TFlange outer hole center distance hight
252 mm
QFlange outer hole center distance length
346 mm
UDistance underside to center mounting holes
77 mm
Manufacturer
Battioni Pagani
