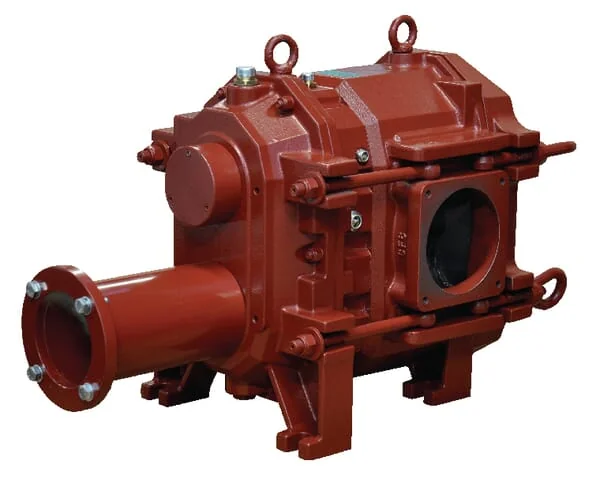

Battioni Pagani - BREVO260H - Br-Evo Pump 283m³/h Hydraulic Drive Battioni Pagani

SKU: battioni-pagani-brevo260h

Battioni Pagani - BREVO260H - Br-Evo Pump 283m³/h Hydraulic Drive Battioni Pagani

€8,364.32

(excl. VAT)
RRP:€10,853.83
Save €2,489.87
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€8,364.32

Maintenance on site For convenient cleaning, simply loosen the four eye nuts on the rear cover and remove the cover plate The rotors, mechanical seals and wear plates can also be replaced on site The standard oil-filled intermediate chamber ensures lubrication and cooling of the seals
Battioni Pagani
Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Over 645 genuine Battioni Pagani spare parts are available at Partao. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment.

Unit
Each
HWidth
378 mm
Weight
220 kg
CLength
796 mm
Benefits
Lower maintenance costs by maintaining on site The intermediate chamber filled with oil ensures protection of the drive components
Flow max.
4718 l/min
Connection
40
Properties
The BR-EVO-series pumps can be supplied in three versions: direct drive (D), pulley drive (P) or hydraulic drive (H) Tungsten carbide seals between pump housing and intermediate chamber Replaceable steel cover plates The three-blade rotor is designed for suction heights of up to an 8-metre head of water The BR-EVO-type displacement pumps can be operated both clockwise and anti-clockwise
UEye width
20 mm
Consists of
The BR-EVO-type pumps are supplied with a special tool for removing the rotors and for installing and removing the mechanical seals Including CE-compliant PTO shaft guard Without suction and pressure flange
TDistance T
381 mm
P max. (bar)
6 BAR
QPlate length
61 mm
Rotation max.
600 r/min
ZWidth outside
370 mm
PMounting width
260 mm
NHeight with eye
545 mm
Application range
The BR-EVO-series displacement pumps from Battioni Pagani have been designed to pump slurry according to the displacement principle, for example from the cellar to the silo
XDistance bore width
300 mm
LDistance center shafts
176 mm
MDistance center to top
195 mm
BDistance 2nd bore to end
217 mm
Diameter of mounting hole
20 mm
Power requirement (max. pressure)
44 kW
Distance underside to center shaft
174 mm
FDistance center shaft to left side
189 mm
GDistance center shaft to right side
189 mm
ADistance end of shaft to mid first bore
280 mm
Distance mounting holes center to center short side
190 mm
Distance mounting holes short side center to center
305 mm
Manufacturer
Battioni Pagani
