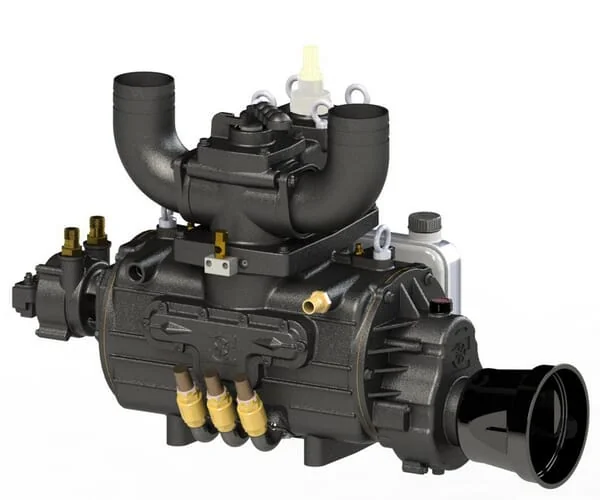

Battioni Pagani - KPSB670MA100 - Vakuumpumpe 540 U/min 18620 l/min mit Automatischer Schmierung und Ballast

Name: Battioni Pagani - KPSB670MA100 - Vakuumpumpe 540 U/min 18620 l/min mit Automatischer Schmierung und Ballast
Brand: Battioni Pagani
SKU: battioni-pagani-kpsb670ma100
Price: 7336.68 EUR
Availability: InStock

SKU: battioni-pagani-kpsb670ma100

€7,336.68€6,270.67 (Excl. VAT)

RRP:€10,078.67

Save €2,742.41

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€7,336.68

Brand

Battioni Pagani

Pros

Liquid cooled housing with integrated water pump Extra air cooling (BALLAST air injection system) Comes standard with heat-resistant "Long Life" blades Automatic lubrication The pump is suitable for continuous operation in both vacuum and pressure modes Crash protection system: in case of fault or blade breakage, the rotor and the rotor housing will be protected because the rotor and the mounting flange can slide away downwards Easy blade wear check through inspection hole with wear indication mark A test report by serial number is delivered with each pump

Unit

Each

Weight

265 kg

Includes

Pumps are delivered without oil (art. BP5070) Pumps are supplied without cooling radiator

Vane type

Long life

Drive type

PTO 540 rpm

Max vacuum

0,95 BAR

Shaft diameter

1-3/8 Inch

Max. shaft rotation

540 r/min

Direction of rotation

Counter-clockwise (CCW)

Max. relative pressure

1,5 BAR

Crash protection system

Yes

Lubrication system type

Automatic

Nominal volume flow rate

18620 l/min

Diameter of hose connection

100 mm

Ballast air injection system

Yes

Power requirement for max. vacuum

25 kW

Depression valve connection diameter

1-1/2 Inch

Manufacturer

Battioni Pagani

Item number breakdown: KPS = Model B = BALLAST system, air injection 490, 550, 670 = Series D = Direct driven, 1000 rpm M = Drive with gearbox, 540 rpm P = Pulley driven H = Hydraulic pump driven L = Rotation counter clockwise R = Rotation clockwise A = Automatic lubrication 100 = Ø hose connection, 100mm The pump rotation is determined with the drive shaft aligned with the observer. If, for example, a pump is driven directly by a tractor, it must be driven counter clockwise.

Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Over 1,909 genuine Battioni Pagani spare parts are available at Partao. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment.
