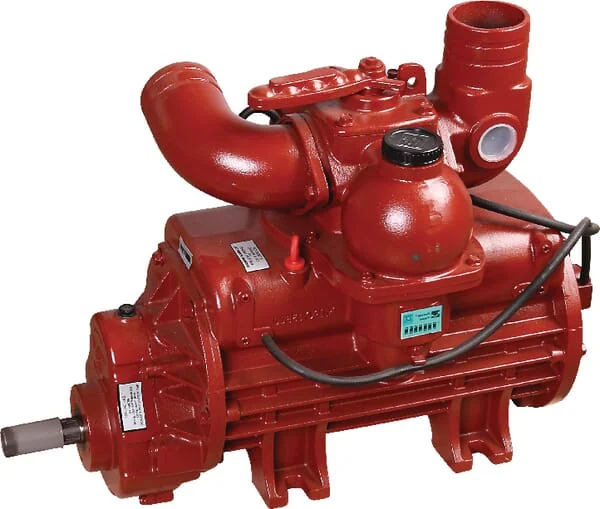

Battioni Pagani - MEC13500MAV - Vacuum Pump Direct Drive CCW Battioni Pagani
Battioni Pagani - MEC13500MAV - Vacuum Pump Direct Drive CCW Battioni Pagani
Battioni Pagani - MEC13500MAV - Vacuum Pump Direct Drive CCW Battioni Pagani
Battioni Pagani - MEC13500MAV - Vacuum Pump Direct Drive CCW Battioni Pagani
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Battioni Pagani - MEC13500MAV - Vacuum Pump Direct Drive CCW Battioni Pagani

Battioni Pagani - MEC13500MAV - Vacuum Pump Direct Drive CCW Battioni Pagani

€2,265.63

(Excl. VAT)

Price

(Excl. VAT)

€2,265.63

Product Description

The MEC II-series pumps have an automatic protection system. So, for example, if a vane breaks, the rotor and rotor housing can be protected by the rotor—including the flange mountings—being pushed downwards MEC II-series pumps are supplied with long-life (heat-resistant) vanes as standard MEC II-series pumps feature a temperature meter to enable the temperature to be read during operation A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni-Pagani produces hydraulic systems and components for agricultural and industrial machinery. The brand specializes in high-pressure pumps, valves, and power transmission solutions. Its products are widely used in tractors, harvesters, and other heavy-duty farming equipment. Shop more than 645 genuine Battioni-pagani spare parts.

Product Details

Brand
Battioni Pagani
Unit
Each
Weight
178 kg
HHeight
605 mm
Benefits
Minimum repair costs thanks to the unique automatic protection system As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Long life
Drive type
PTO 1000 rpm with gearbox
Max vacuum
0,95 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
Including PTO shaft cover Without pressure relief valve (item 0200013) and vacuum valve (item 0155513) The pumps are delivered without lubrication oil (item BP5070)
OTotal width
390 mm
ETotal length
830 mm
Shaft diameter
1-3/8 Inch
Technical info
Structure of item number: MEC = series, 9000 = type, MAV = direct drive, 1000 rpm The pump is equipped with force-feed lubrication, which is set using dripper nozzles In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation Pumps with indirect drive (M) must be driven anti-clockwise The direction of rotation is determined when the axle to be driven is aligned with the observer If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Reservoir capacity
3,5 l
Max. shaft rotation
1000 r/min
Direction of rotation
Counter-clockwise (CCW)
Max. relative pressure
1,5 BAR
Crash protection system
Yes
Lubrication system type
Forced
FMounting holes diameter
22 mm
Nominal volume flow rate
13845 l/min
B,LMounting holes distance
247 mm246 mm
Ballast air injection system
No
D,PDiameter of hose connection
100 mm
CMounting holes to end distance
192 mm
IShaft centre to bottom distance
69 mm
Safety valve connection diameter
2 Inch
Power requirement for max. vacuum
25 kW
Power requirement for max. pressure
44 kW
Depression valve connection diameter
1-1/2 Inch
AMounting holes to shaft end distance
391 mm
MShaft centre to left side end distance
195 mm
NShaft centre to right side end distance
195 mm
Manufacturer
Battioni Pagani
