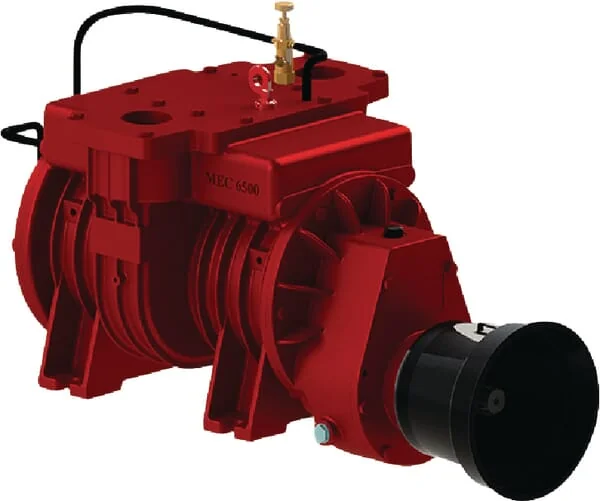

Battioni Pagani - MEC6500MSC - Mobile Vacuum Pump STD Battioni Pagani

SKU: battioni-pagani-mec6500msc

Battioni Pagani - MEC6500MSC - Mobile Vacuum Pump STD Battioni Pagani

€1,328.13

(excl. VAT)
RRP:€1,784.42
Save €456.28
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€1,328.13

A maintenance hatch can be used to determine the wear condition of the vanes, indicating when the vanes need to be replaced Each pump is subjected to a final check in the factory, in which the vacuum, compression and lubrication are tested, among other factors A test report relating to the serial number is drawn up for each pump
Battioni Pagani
Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Over 645 genuine Battioni Pagani spare parts are available at Partao. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment.

Unit
Each
Height
450 mm
Benefits
As pumps from B.P. are tested, inspected and packaged with the utmost care, trouble-free start-up is 100% guaranteed
Vane type
Standard
Drive type
PTO 540 rpm
Max vacuum
0,94 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
These pumps are supplied with standard vanes ("Long-life" vanes available on request) Without pressure relief valve (0250013) and vacuum valve (0155513) The pumps are delivered without lubrication oil (BP5070) Including PTO shaft cover
Total width
410 mm
Total length
693 mm
Shaft diameter
1-3/8 Inch
Technical info
Composition of the item numbers: MEC = series, 6500 = type, M = indirect drive 540 rpm, SC = reel compressor Reel compressors are equipped with a forced lubrication system that is set using dripper nozzles The lubrication system must be checked at all times to ensure proper function Pumps with indirect drive (M) must be driven anti-clockwise The direction of rotation is determined when the axle to be driven is aligned with the observer If the pump has a direct drive (for example, by a tractor unit) it must be driven anti-clockwise
Application range
The MEC S.C. version has been specially developed as a compressor to completely empty hose reels
Max. shaft rotation
600 r/min
Direction of rotation
Counter-clockwise (CCW)
Max. relative pressure
4 BAR
Crash protection system
No
Lubrication system type
Forced
Mounting holes diameter
15 mm
Mounting holes distance
227 mm252 mm
Nominal volume flow rate
7000 l/min
Diameter of hose connection
2-1/2 Inch
Ballast air injection system
No
Mounting holes to end distance
156 mm
Shaft centre to bottom distance
95 mm
Safety valve connection diameter
1-1/2 Inch
Power requirement for max. vacuum
12,5 kW
Power requirement for max. pressure
24 kW
Depression valve connection diameter
1-1/2 Inch
Mounting holes to shaft end distance
285 mm
Shaft centre to left side end distance
195 mm
Shaft centre to right side end distance
215 mm
Manufacturer
Battioni Pagani
