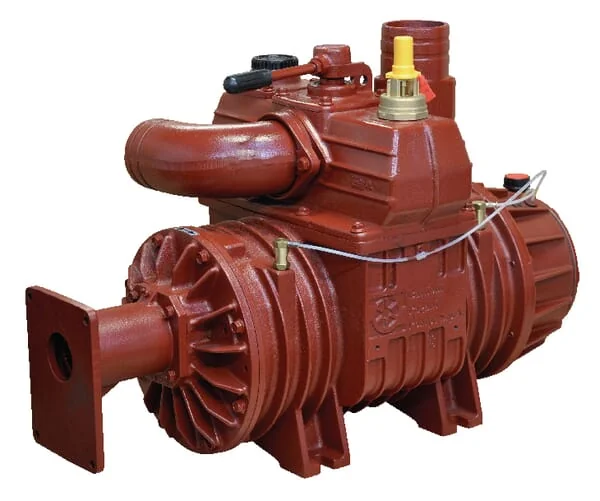

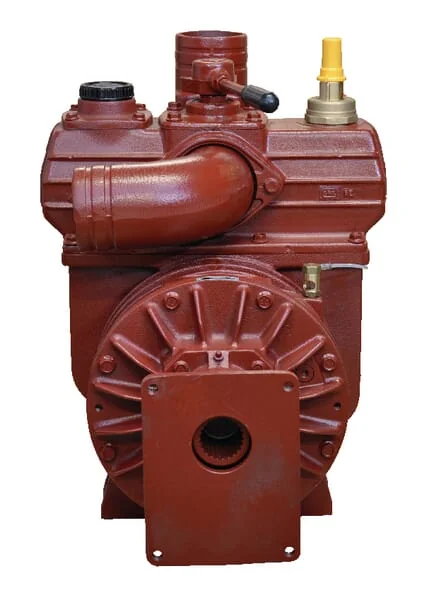

Battioni Pagani - STAR84HRA - Vacuum Pump Hydraulic Drive Auto-Lube

SKU: battioni-pagani-star84hra

Battioni Pagani - STAR84HRA - Vacuum Pump Hydraulic Drive Auto-Lube

€3,845.36€3,286.63 (Excl. VAT)

RRP:€4,838.50
Save €993.34

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,845.36

Brand
Battioni Pagani
Unit
Each
Weight
263 kg
Vane type
Standard
Drive type
Hydraulic
Max vacuum
0,9 BAR
Properties
These pumps can generate both positive pressure and vacuum
Consists of
Without hydraulic motor and key bush Including hydraulic base for mounting the hydraulic motor Including vacuum valve Without pressure relief valve (item 0200013) These pumps are supplied with standard vanes Long-life vanes available on request Including swivelling connection pipes The pumps are delivered without lubrication oil (item BP5070)
Technical info
Composition of item numbers: STAR = series, 72 = type, H = hydraulic drive, R = clockwise rotation, A = automatic lubrication On pumps without automatic lubrication (no "A" in the item number), the pump is equipped with a forced lubrication system that is adjusted using dripper nozzles • Forced lubrication available on request On pumps without automatic lubrication, the quantity of lubrication oil is set in the factory and cannot be changed without a tool In the case of forced lubrication, as with automatic lubrication, the function must be checked at all times during operation Hydraulically driven pumps rotate clockwise. Anti-clockwise rotation available on request The direction of rotation is determined when the axle to be driven is aligned with the observer Oil to be used for lubricating the vanes: genuine oil from B. P. (item number BP5070) STAR replaces the Agri- and Euro series
Application range
These vacuum pumps with vanes are mainly used in agriculture for filling and emptying slurry tanks
Max. shaft rotation
1200 r/min
Direction of rotation
Clockwise (CW)
Max. relative pressure
1,5 BAR
Crash protection system
No
Lubrication system type
Automatic
Nominal volume flow rate
14800 l/min
Ballast air injection system
No
Power requirement for max. vacuum
31 kW
Manufacturer
Battioni Pagani

Battioni Pagani
Battioni Pagani is an Italian company with a long-standing tradition in the production of vacuum pumps and hydraulic systems for agricultural and industrial applications. Founded in 1953 in Parma, Italy, the company has established itself as a leader in the design and manufacturing of high-performance components. Battioni Pagani is known for its robust and reliable solutions, particularly in the field of liquid manure handling and irrigation. The brand's product range primarily includes a comprehensive selection of vacuum pumps, such as the MEC and STAR series, which are widely used in vacuum tankers and agricultural sprayers. Additionally, Battioni Pagani manufactures various hydraulic components, including valves, gearboxes, and power take-off (PTO) shafts. These products are engineered to withstand demanding operational conditions and provide efficient power transmission and fluid management. Partao offers a wide array of genuine Battioni Pagani spare parts to ensure the continued performance of your agricultural machinery. Our top categories for Battioni Pagani include Air Filters, Ball Bearings, Bearing Housings, Blades & Graders, and Bolts & Fasteners, covering essential components for maintenance and repair. Over 1,909 genuine Battioni Pagani spare parts are available at Partao. Agricultural operators across Europe and beyond frequently choose Battioni Pagani components for their durability and efficiency in tasks such as liquid manure spreading, irrigation, and other demanding fluid transfer applications. The brand's reputation for quality makes its parts a trusted choice for maintaining the operational integrity of vacuum tankers and other specialized farm equipment.
