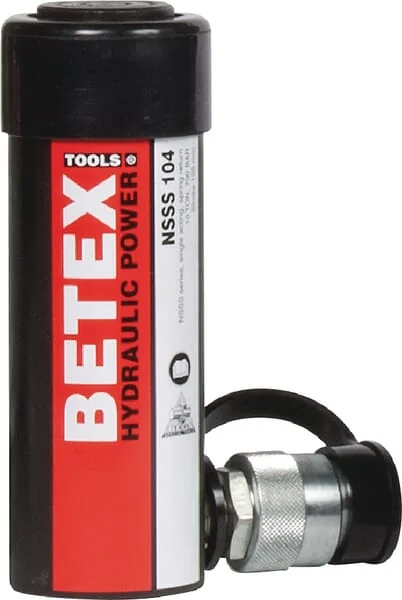

Betex - 8230104 - Cylinder Nsss 104
Betex - 8230104 - Cylinder Nsss 104
Betex - 8230104 - Cylinder Nsss 104
Betex - 8230104 - Cylinder Nsss 104
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Betex - 8230104 - Cylinder Nsss 104

Betex - 8230104 - Cylinder Nsss 104

€549.20

(Excl. VAT)

Price

(Excl. VAT)

€549.20

Product Details

Brand
Betex
Unit
Each
Stroke
101 mm
Weight
3,3 kg
AMin. length
171 mm
BMax. length
272 mm
Oil capacity
145 cm³
FRod diameter
40 mm
Max. capacity
10 t
EInside diameter
45 mm
Max. working pressure
700 BAR
XCylinder head length
30 mm
UMin. mounting holes distance
39 mm
Mounting type - rod connection
No mounting
WCylinder head outside diameter
57 mm
KCylinder end to rod end distance
6 mm
Mounting type - cylinder connection
No mounting
Mounting thread type - rod connection
UN
Mounting thread 2 type - rod connection
UN
Mounting thread diameter - rod connection
2-1/4 Inch
DMounting thread per inch - rod connection
14
Mounting thread 2 diameter - rod connection
1 Inch
DMounting thread per inch - cylinder connection
18
VMounting thread diameter - cylinder connection
5/16 Inch
Mounting thread 2 thread per inch - rod connection
8
HOil connection centre to cylinder end distance - cylinder side
19 mm
Manufacturer
Betex
