Home
Attachments & Lift
PTO & Driveline
Other PTO & Driveline Parts

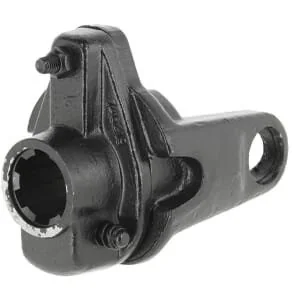

Bondioli Pavesi - 6060E0302R - Shear Bolt Coupling
Bondioli Pavesi - 6060E0302R - Shear Bolt Coupling

In stock - ready to ship

Order now for delivery between 6 May and 9 May
Free shipping

Pay Securely with

Bondioli Pavesi - 6060E0302R - Shear Bolt Coupling

Bondioli Pavesi - 6060E0302R - Shear Bolt Coupling

€151.91

(Excl. VAT)

Price

(Excl. VAT)

€151.91

Product Description

The Bondioli & Pavesi 6060E0302R is a genuine shear bolt coupling designed to safeguard agricultural machinery from damage due to excessive torque. This essential safety component features a 35mm shaft diameter with 6 splines, an outer diameter of 110mm, and an overall length of 100mm. It is engineered to break at a torque of 1200 Nm, preventing costly repairs to transmissions and equipment.
Bondioli Pavesi
Bondioli-pavesi produces power transmission systems and components for agricultural machinery. The brand specializes in gearboxes, PTO shafts, and hydraulic pumps used in tractors and implements. Its solutions ensure reliable power transfer in demanding farming operations. Shop more than 2,554 genuine Bondioli-pavesi spare parts.

Product Details

Brand
bondioli-pavesi
Outer Diameter (mm)
110
Length (mm)
100
Shaft Diameter (mm)
35
Number Of Splines
6
Breaking Torque (Nm)
1200
Weight (kg)
2.5
Manufacturer
bondioli-pavesi
