Home
Attachments & Lift
PTO & Driveline
PTO Clutches
Bondioli Pavesi - 6WHE66003R - Clutch LR24 G7/H7 2600nm
Bondioli Pavesi - 6WHE66003R - Clutch LR24 G7/H7 2600nm
Bondioli Pavesi - 6WHE66003R - Clutch LR24 G7/H7 2600nm
Bondioli Pavesi - 6WHE66003R - Clutch LR24 G7/H7 2600nm
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Bondioli Pavesi - 6WHE66003R - Clutch LR24 G7/H7 2600nm

Bondioli Pavesi - 6WHE66003R - Clutch LR24 G7/H7 2600nm

€1,045.08

(Excl. VAT)

Price

(Excl. VAT)

€1,045.08

Product Description

Drive interrupted on overload. Automatically switches on at lower speed.
Bondioli Pavesi
Bondioli-pavesi produces power transmission systems and components for agricultural machinery. The brand specializes in gearboxes, PTO shafts, and hydraulic pumps used in tractors and implements. Its solutions ensure reliable power transfer in demanding farming operations. Shop more than 2,554 genuine Bondioli-pavesi spare parts.

Product Details

Brand
Bondioli&Pavesi
Unit
Each
Benefits
Drive security device No time lost in restoring torque
Properties
1 direction of rotation
Cross length
91,4 mm
Technical info
Torque can be set to pulsing by reducing the speed
Shaft size code
6 G7 S7 H7
Clutch type code
LR24
DOutside diameter
151 mm
Max static torque
2600 N·m
Cross cap diameter
30,2 mm
Max dynamic torque
260 N·m
Rotation direction
Right
Max. rotation speed
1000 r/min
Connection locking type
Clamp bolt (interfering)
Outside connection diameter
1-3/8 Inch
Connection number of splines/grooves
6
Manufacturer
Bondioli&Pavesi

Similar items you might like

  • Bondioli Pavesi

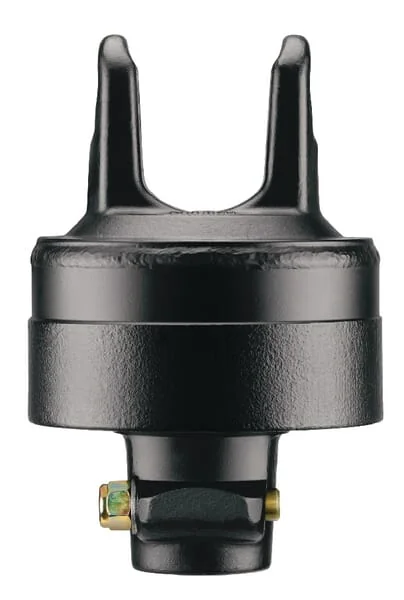

    Bondioli Pavesi - 6WLE65004R - Coupling LR24 2500nm 1 3/4Z6
