Bondioli Pavesi - CS6R121CEWQ7007 - Wide Angle Joint Shaft S6R

SKU: bondioli-pavesi-cs6r121cewq7007

Bondioli Pavesi - CS6R121CEWQ7007 - Wide Angle Joint Shaft S6R

€845.60

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€845.60

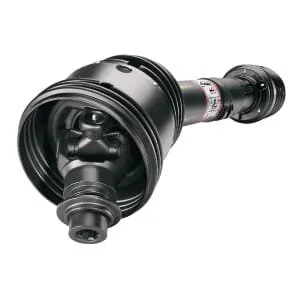

The Bondioli & Pavesi CS6R121CEWQ7007 is a genuine wide angle joint shaft (PTO shaft) from the S6 series, designed for demanding agricultural and industrial applications. It features a cam clutch limiter (Q) for overload protection and a cone protection (C). The shaft has a folded length of 1210 mm and an extended length of 1700 mm. It delivers 100 HP (74 kW) at 540 RPM and 160 HP (118 kW) at 1000 RPM, with a maximum operating angle of 80 degrees. Both the tractor and machine sides feature a 1-3/8 inch, 6-spline connection.
Bondioli Pavesi
Bondioli-pavesi produces power transmission systems and components for agricultural machinery. The brand specializes in gearboxes, PTO shafts, and hydraulic pumps used in tractors and implements. Its solutions ensure reliable power transfer in demanding farming operations. Shop more than 2,553 genuine Bondioli-pavesi spare parts.

Brand
bondioli-pavesi
Part Numbers
cs6r121cewq7007
Series
S6
Folded Length (mm)
1210
Max Length (mm)
1700
Power At 540rpm (hp)
100
Power At 540rpm (kW)
74
Power At 1000rpm (hp)
160
Power At 1000rpm (kW)
118
Tube Type
Citron
Tractor Side Connection
1-3/8" 6 Spline
Machine Side Connection
1-3/8" 6 Spline
Protection Type
C (Cone)
Limiter Type
Q (Cam Clutch)
Working Angle (°)
80
Manufacturer
bondioli-pavesi
