Bondioli Pavesi - L3A1N7 - Monoblock Valve

SKU: bondioli-pavesi-l3a1n7

Bondioli Pavesi - L3A1N7 - Monoblock Valve

€542.14€463.37 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€542.14

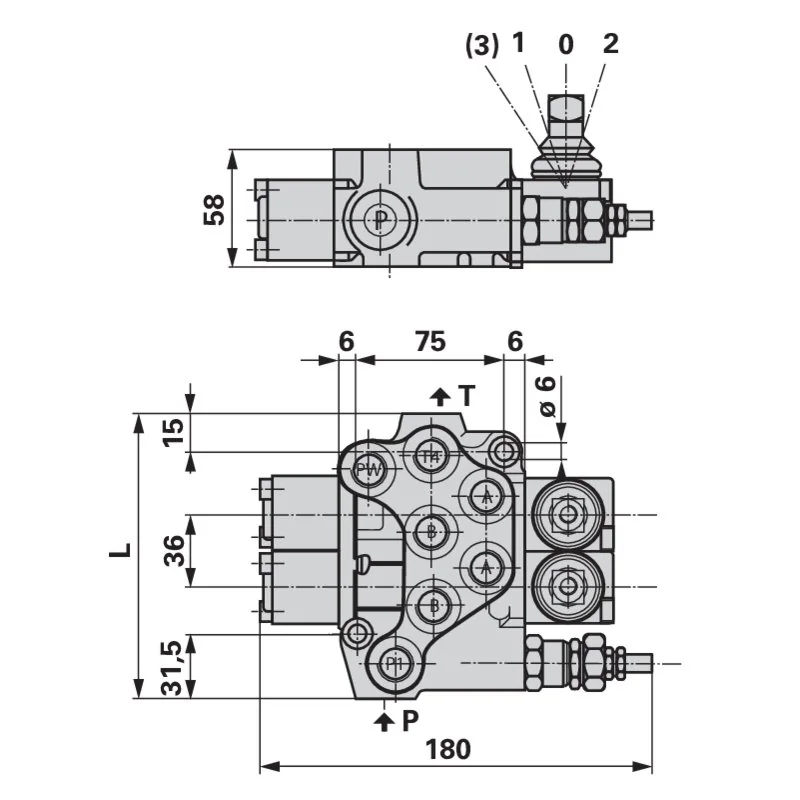

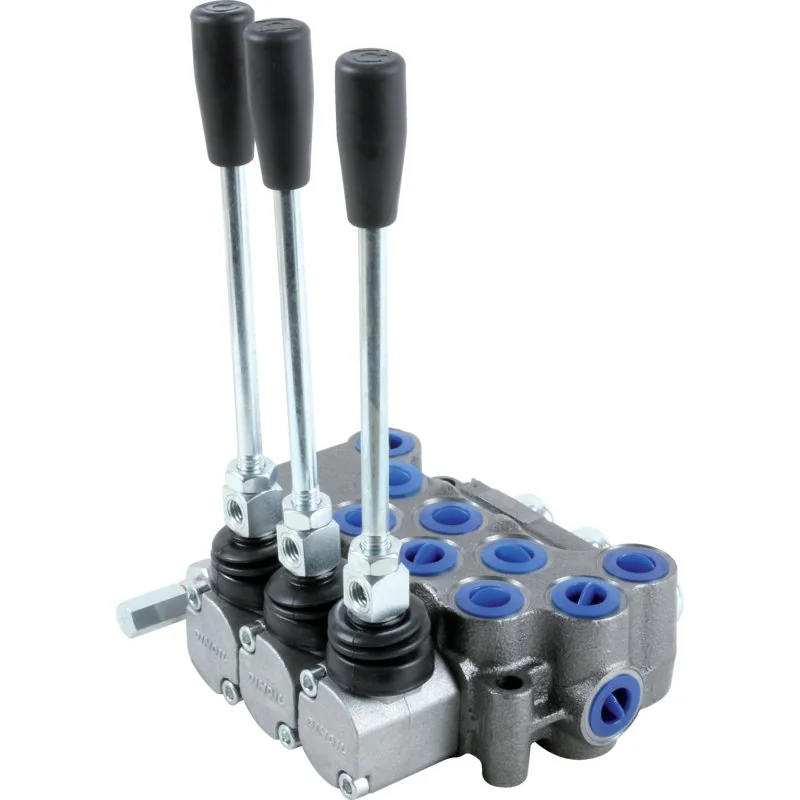

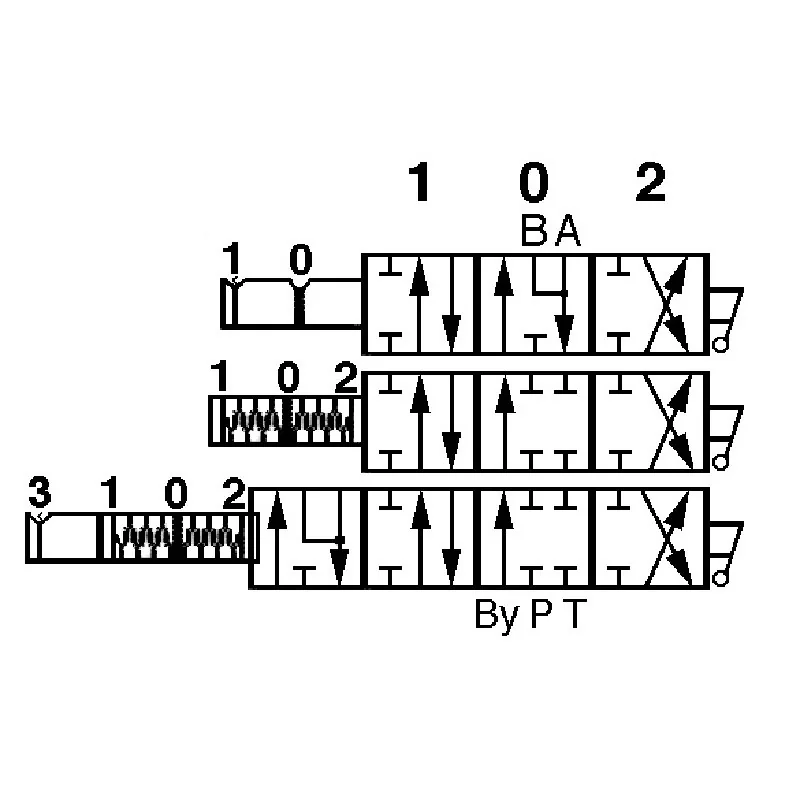

Monoblock valve Series ML with actuation by hand lever and pressure relief valve (test pressure setting on delivery 180 bar) Functions: 1 x single-acting with detent in 0 and 1 1 x double-acting with spring return 1 x double-acting with spring return and detented float position in 3 Connections: P, P1 pressure inlet T, T4 return A, B to consumer PW pressure bypass after conversion with plug 00 830 173
Bondioli Pavesi
Bondioli-pavesi produces power transmission systems and components for agricultural machinery. The brand specializes in gearboxes, PTO shafts, and hydraulic pumps used in tractors and implements. Its solutions ensure reliable power transfer in demanding farming operations. Shop more than 2,722 genuine Bondioli-pavesi spare parts.

Brand
bondioli-pavesi
Length (mm)
173
Temperature Range
-20 bis +80 °C
Number of Sections
3
Max Flow Rate (l/min)
45
Connection Thread A, B
3/8"
Max Return Pressure (bar)
50
Connection Thread P, T, PW
3/8"
Max Operating Pressure (bar)
250
Manufacturer
bondioli-pavesi
