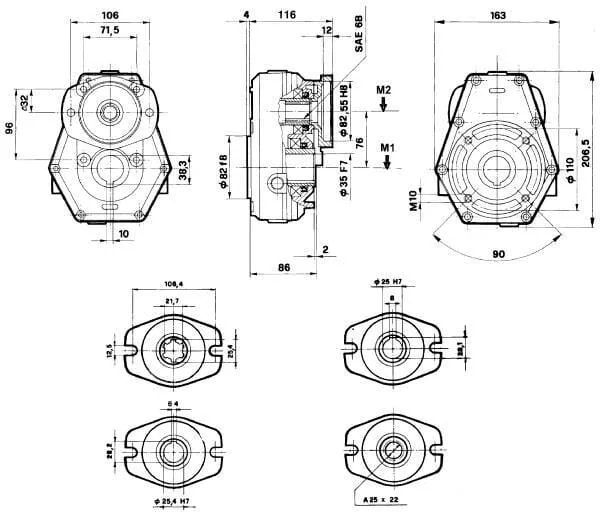

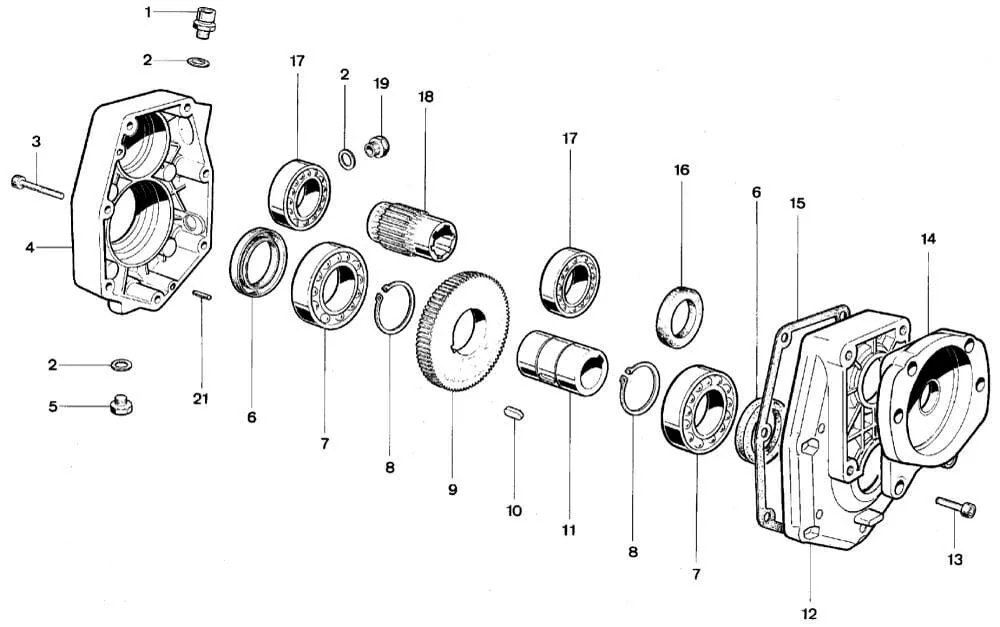

Borelli - GBR20ST426 - Pre Stage Unit
Borelli - GBR20ST426 - Pre Stage Unit
Borelli - GBR20ST426 - Pre Stage Unit
Borelli - GBR20ST426 - Pre Stage Unit
Borelli - GBR20ST426 - Pre Stage Unit

In stock - ready to ship

Order now for delivery between 15 May and 19 May
Free shipping

Pay Securely with

Borelli - GBR20ST426 - Pre Stage Unit

Borelli - GBR20ST426 - Pre Stage Unit

€149.83

(Excl. VAT)

Price

(Excl. VAT)

€149.83

Product Description

Output female shaft: 35mm Key size: 10mm All gearboxes are supplied without oil. First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year. Contact us for power at a different RPM.
Borelli
Borelli specializes in agricultural sprayers and precision application equipment for crop protection. The brand offers mounted, trailed, and self-propelled sprayers for liquid and granular treatments. Its systems are designed for accurate chemical distribution and minimal environmental impact. Shop more than 183 genuine Borelli spare parts.

Product Details

Brand
Borelli
Unit
Each
Weight
4,8 kg
Benefits
Lightweight design
Properties
High output torque
Consists of
Pre-stage gearbox Not filled with oil
Contains oil
No
Ratio factor
1:3.8
Application range
Orbit motors with SAE flange and 25-mm shaft
Max. input torque
186 nm
Max. oil capacity
0,22 l
Max. output torque
49 nm
Max. input rotation speed
200 r/min
Max. output rotation speed
760 r/min
Manufacturer
Borelli
