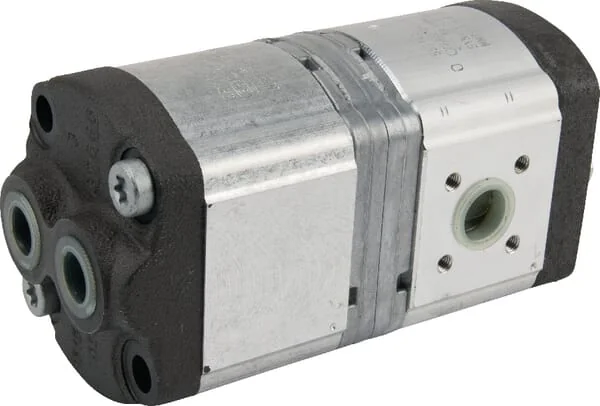

Bosch Rexroth - 0510565396 - Gear Pump AZPFF-11-011/008LCN20XXPX-S0173 Bosch Rexroth

SKU: bosch-rexroth-0510565396

Bosch Rexroth - 0510565396 - Gear Pump AZPFF-11-011/008LCN20XXPX-S0173 Bosch Rexroth

€551.05

(excl. VAT)
RRP:€632.93
Save €81.90

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€551.05

Bosch Rexroth
Bosch Rexroth is a leading global specialist in drive and control technologies, formed from the merger of Mannesmann Rexroth AG and the automation technology business of Robert Bosch GmbH. While its exact founding year as a combined entity is more recent, its constituent parts have a long history, with Rexroth dating back to 1795 in Lohr am Main, Germany. Today, Bosch Rexroth operates as a subsidiary of the Robert Bosch GmbH, headquartered in Lohr am Main, Germany, and is a key player in industrial and mobile applications worldwide. The company's product portfolio spans a vast array of hydraulic, electric drive and control, gear, and linear motion technologies. Bosch Rexroth is particularly known for its advanced hydraulic components, including pumps, motors, valves, and cylinders, which are integral to many types of heavy machinery. Its solutions are designed for precision, efficiency, and robustness, catering to complex automation tasks in various industries. Partao offers a selection of genuine Bosch Rexroth spare parts to support the maintenance and repair of machinery utilizing these advanced components. Our catalog includes critical items such as Hydraulic Control Valves, Hydraulic Pumps, Other Bearings, Other Electrical Components, and Other Hydraulics Parts. Over 156 genuine Bosch Rexroth spare parts are available at Partao. Bosch Rexroth components are widely integrated into agricultural machinery, construction equipment, and industrial systems globally. Operators and maintenance teams rely on the brand's engineering excellence for reliable performance in demanding applications, from steering systems in tractors to complex hydraulic drives in harvesters. The widespread availability and technical support for its products ensure long-term operational efficiency.

Unit
Each
Weight
3,5 kg
Shaft type
Tapered
Displacement
11 cm³/rev8 cm³/rev
Port position
Side
Flange type norm
German
Housing material
Aluminium
Sealing material
Viton
Max pressure peak
190 BAR140 BAR
Mounting diameter
50 mm
Max rotation speed
4000 r/min
Min rotation speed
800 r/min
Shaft cone size code
1:5
Main port thread type
Metric
Main port thread pitch
1.50 mm
Number of mounting holes
4
Main port thread diameter
M18
Pressure port thread type
Metric
Pressure port thread pitch
1.50 mm

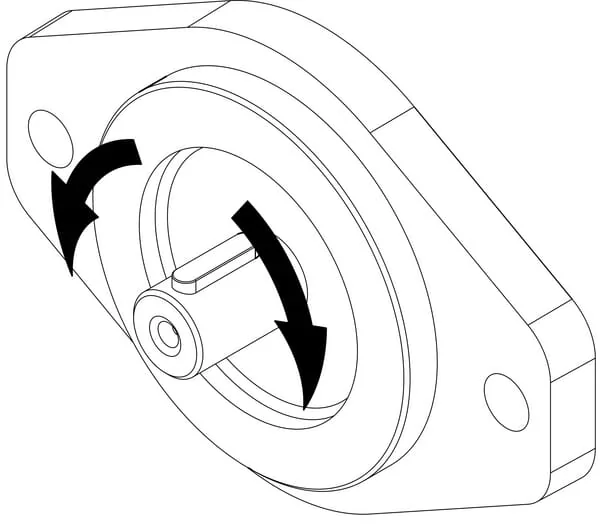

Prefered rotation direction
Counter-clockwise (CCW)
Pressure port thread diameter
M18
Flange and back cover material
Steel
Max. continous working pressure
250 BAR250 BAR
Max intermittend working pressure
185 BAR130 BAR
Suction port bolts circle diameter
40 mm
Pressure port bolts circle diameter
35 mm
Manufacturer
Bosch Rexroth
