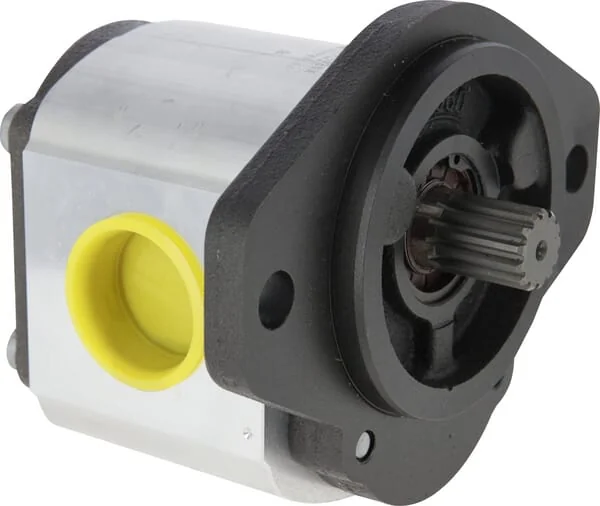

Bosch Rexroth - 0510725089 - Gear Pump Azpn-21-032Rdcxxmb
Bosch Rexroth - 0510725089 - Gear Pump Azpn-21-032Rdcxxmb
Bosch Rexroth - 0510725089 - Gear Pump Azpn-21-032Rdcxxmb
Bosch Rexroth - 0510725089 - Gear Pump Azpn-21-032Rdcxxmb

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping

Pay Securely with

Bosch Rexroth - 0510725089 - Gear Pump Azpn-21-032Rdcxxmb

Bosch Rexroth - 0510725089 - Gear Pump Azpn-21-032Rdcxxmb

€359.72

(Excl. VAT)

Price

(Excl. VAT)

€359.72

Product Details

Brand
Bosch Rexroth
Unit
Each
Weight
5,9 kg
Shaft type
Splined
Displacement
32 cm³/rev
Sealing type
Standard
Port position
Side
Flange type norm
German
Housing material
Aluminium
Sealing material
Fluo rubber [FPM]
Max pressure peak
260 BAR
Mounting diameter
101,6 mm
Max rotation speed
2800 r/min
Min rotation speed
600 r/min
Main port thread type
Metric
Shaft number of teeth
13
Main port thread pitch
2.00 mm
Number of mounting holes
4
Main port thread diameter
M42
Pressure port thread type
Metric
Pressure port thread pitch
1.50 mm
Prefered rotation direction
Clockwise (CW)
Pressure port thread diameter
M18
Flange and back cover material
Steel
Max. continous working pressure
250 BAR
Max intermittend working pressure
240 BAR
Suction port bolts circle diameter
42 mm
Pressure port bolts circle diameter
18 mm
Manufacturer
Bosch Rexroth

Similar items you might like

  • Bosch Rexroth

    Bosch Rexroth - 0510725156 - Hydraulic Pump Azpf-21-025-R

    Bosch Rexroth

    €459.82

  • Bosch Rexroth

    Bosch Rexroth - 0510725330 - Gear Pump Azpf-11-022Lcb20mb

    Bosch Rexroth

    €503.69

  • Bosch Rexroth

    Bosch Rexroth - 0510725384 - Gear Pump Azpf-10-022Lho20kexxx22-S0002

    Bosch Rexroth

    €404.24

  • Bosch Rexroth

    Bosch Rexroth - 0510725386 - Gear Pump Azpf-11-036Lfbxxmd025xx-S0147

    Bosch Rexroth

    €995.01

  • Bosch Rexroth

    Bosch Rexroth - 0510725444 - Gear Pump Azpg-22-032Lcb20mb

    Bosch Rexroth

    €780.69

  • Bosch Rexroth

    Bosch Rexroth - 0510765029 - Hydraulic Pump Azpff-10-022-011-R

    Bosch Rexroth

    €847.65

  • Bosch Rexroth

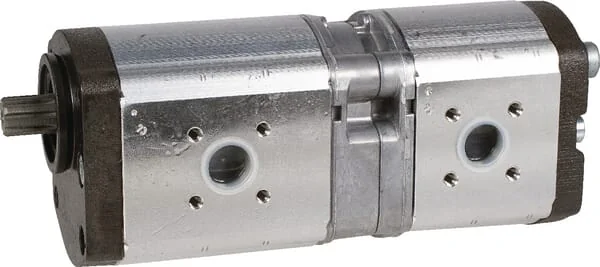

    Bosch Rexroth - 0510765337 - Gear Pump Azpff-21-022/016Lfp2020pb

    Bosch Rexroth

    €513.39

  • Bosch Rexroth

    Bosch Rexroth - 0510765343 - Gear Pump Azpff-12-022/016Lcp2020kb-S0007

    Bosch Rexroth

    €938.46

  • Bosch Rexroth

    Bosch Rexroth - 0510765347 - Gear Pump Azpff-11-022/011Lhr2020kb-S0214

    Bosch Rexroth

    €682.02

  • Bosch Rexroth

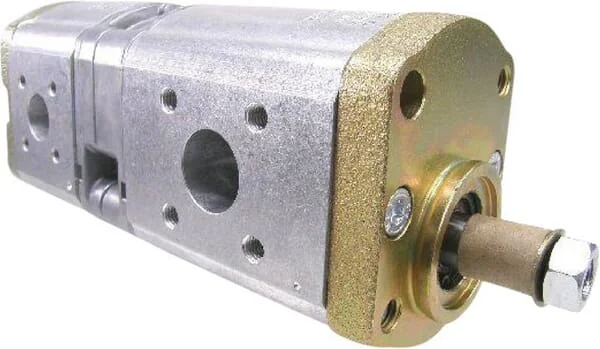

    Bosch Rexroth - 0510765398 - Gear Pump Azpff-22-025/011Lcp2020kb-S0475
