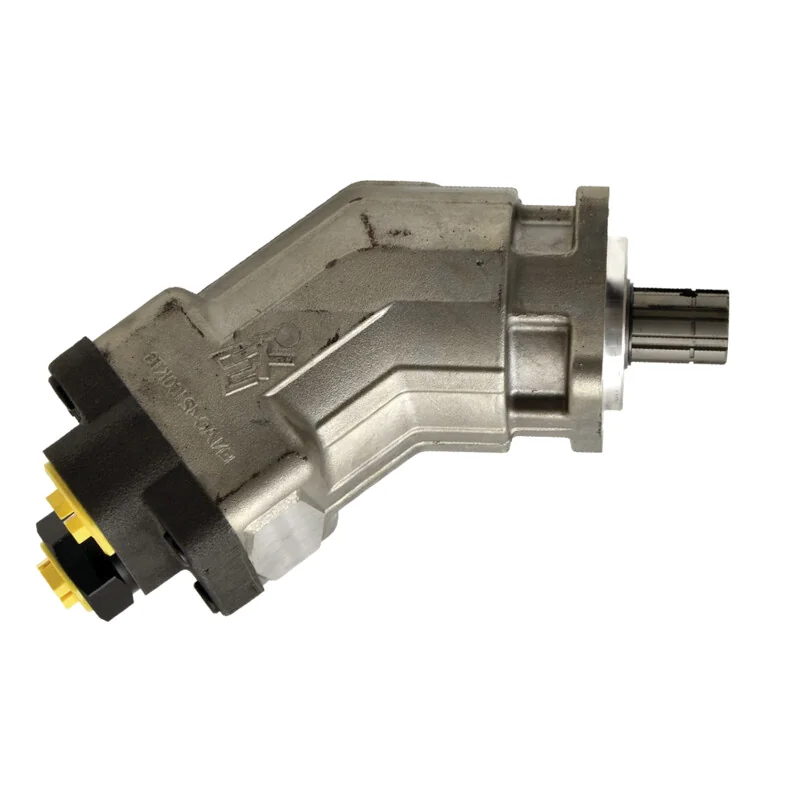

Bosch Rexroth - R902162396 - Axial Piston Fixed Displacement Pump

SKU: bosch-rexroth-r902162396

Bosch Rexroth - R902162396 - Axial Piston Fixed Displacement Pump

€1,562.00€1,335.04 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,562.00

Brand
Bosch Rexroth
Design
Constant pump

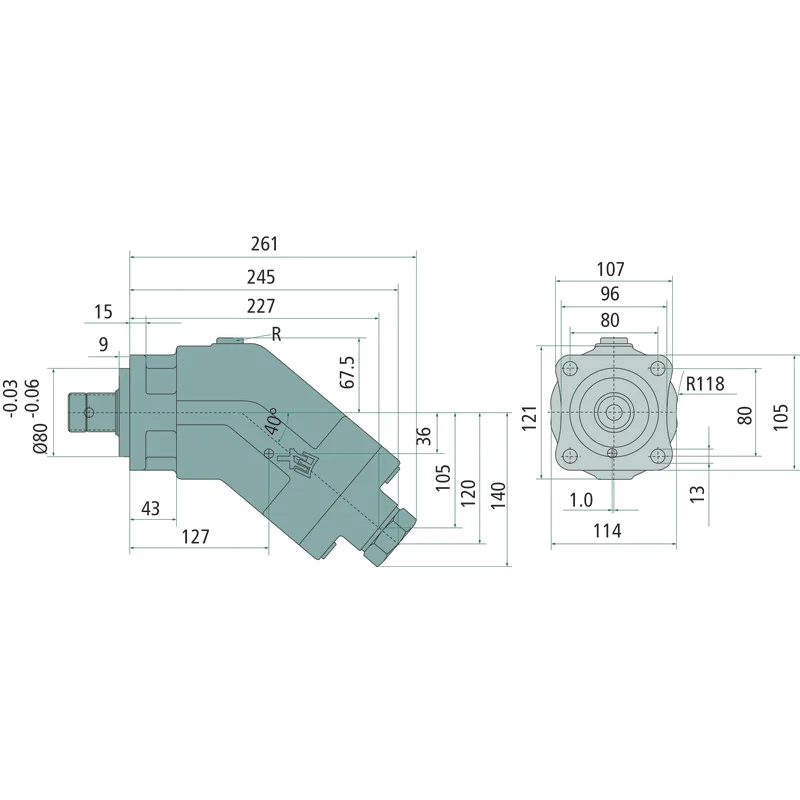

Flange
80 x 80 mm
Version
single-circuit pump
Pump Type
A17-FO
Drive Shaft
Splined shaft 8x32x35

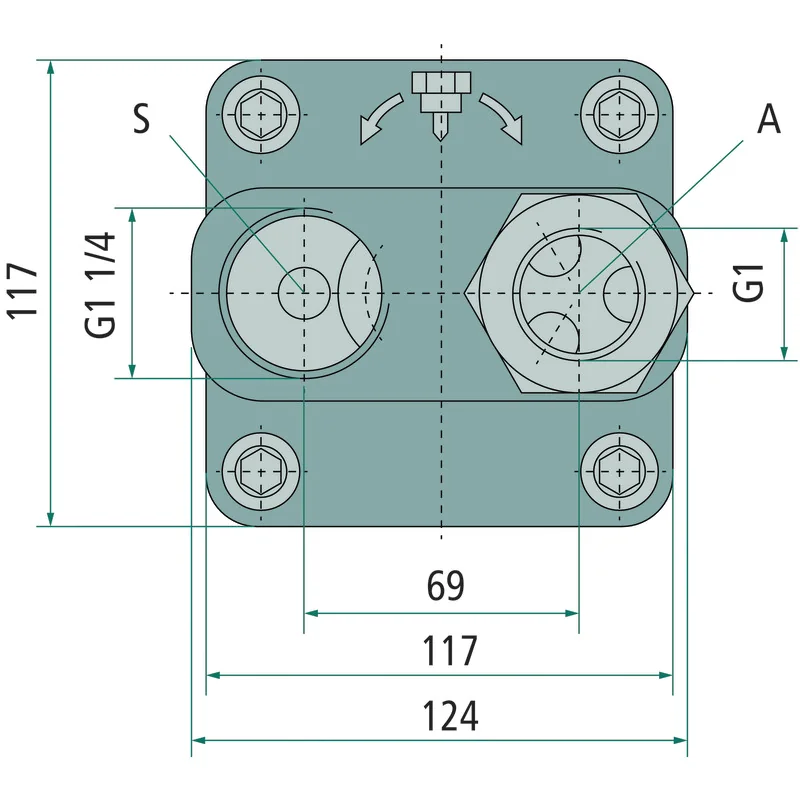

Inlet Connection
G 1.1/4 inch (BSP)
Outlet Connection
G 1 inch (BSP)
Max. Speed (1/min.)
2150
Direction Of Rotation
anticlockwise
Displacement (cc/rev)
80.4
Fitting Diameter (mm)
80
Volume Flow Max. (l/min)
172.86
Max. Power Consumption (kW)
101
Max. Operating Pressure (bar)
350
Hole Pattern Adapter Plate (mm)
80 x 80 (4x)
Minimum pressure on high-pressure side (A)
10 bar
Manufacturer
Bosch Rexroth

This high-pressure pump for commercial vehicles has an open circuit and an angled axis design, with a flange and shaft for direct mounting on the power take-off. The direction of rotation can be changed by replacing the reducing screw connection for the pressure port.
