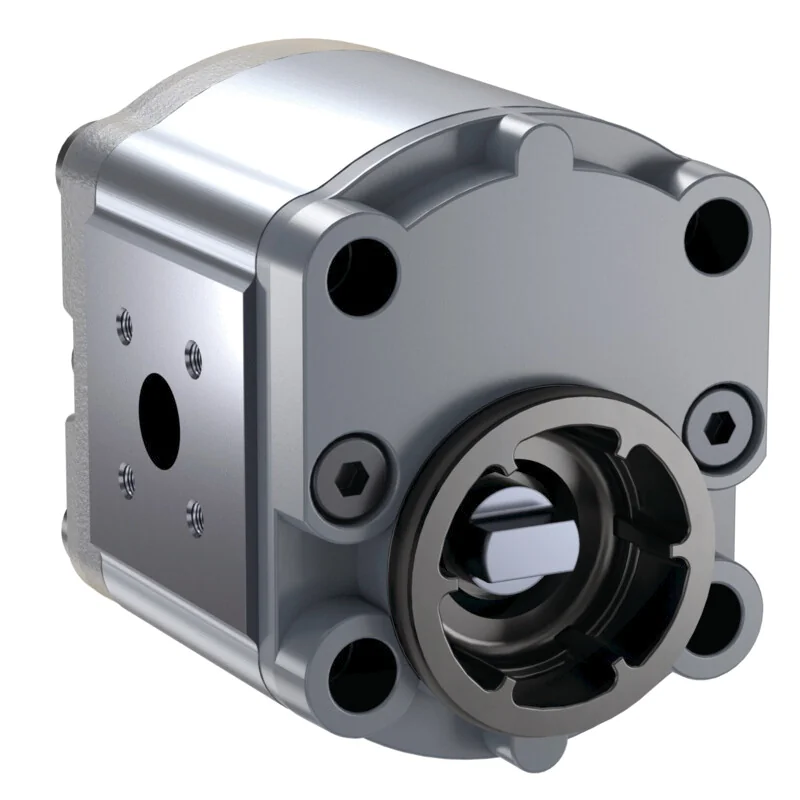

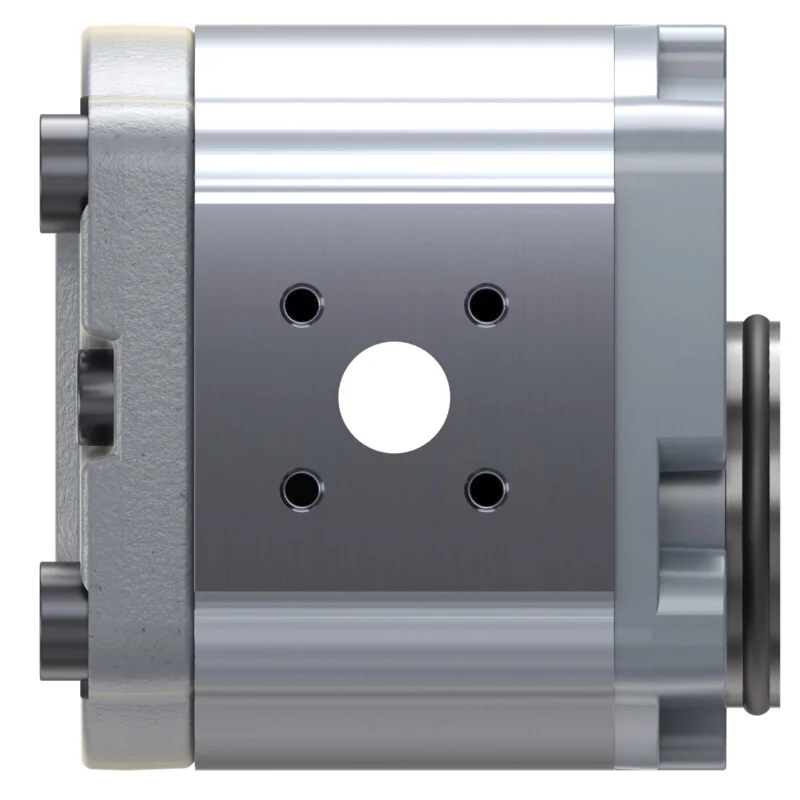

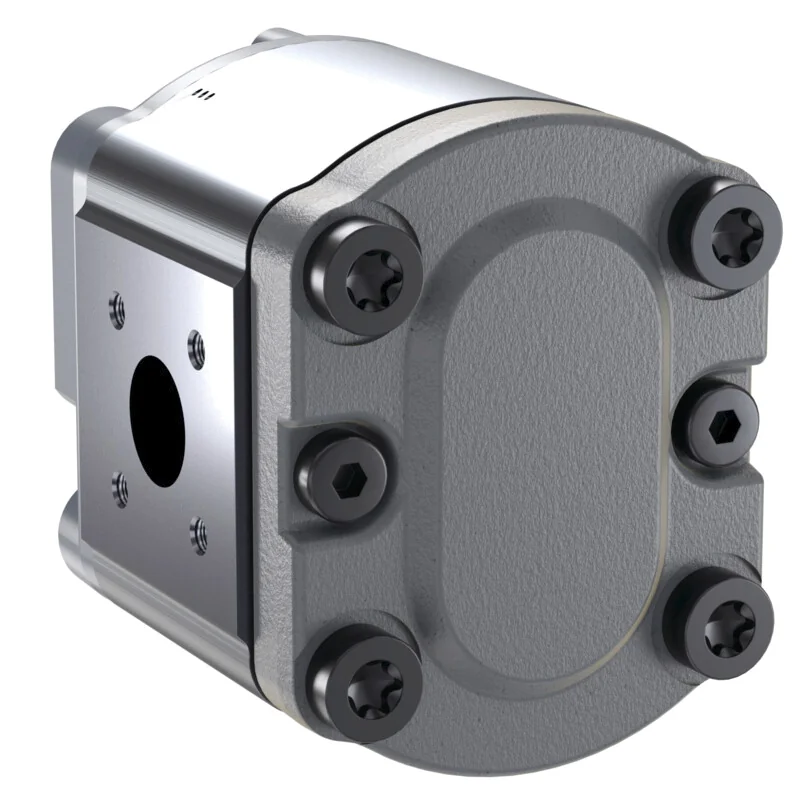

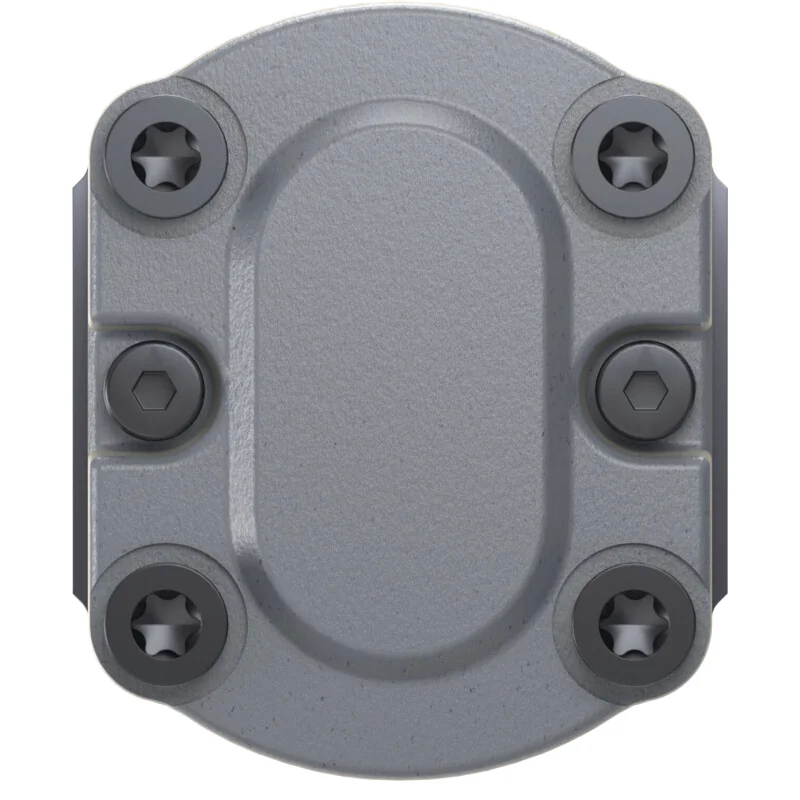

Bosch Rexroth - R918C00605 - Hydraulic Pump

SKU: bosch-rexroth-r918c00605

Bosch Rexroth - R918C00605 - Hydraulic Pump

€1,301.34€1,112.26 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,301.34

Brand
Bosch Rexroth
Drive Shaft
claw, ø 17.8 x 8
Bearing Type
Plain bearings
Seal Material
NBR
Operating Fluid
Mineral oil HLP according to DIN 51524 1-3 or DIN 51524, Part 2 for higher loads
Line Connections
Connection flanges or screw-in threads
Capacity Q (cc/rev)
11
Max. Speed (1/min.)
3500
Min. Speed (1/min.)
500
Direction Of Rotation
Clockwise
Drive Shaft Standards
ISO or SAE
Fitting Diameter (mm)
52
Output Volume (cc/rev)
11
Displacement Q (cm³/U)
11
Delivery Volume (cm³/U)
11
Filter Fineness (ISO 4406)
20/18/15
Min. Rotational Speed (rpm)
500
Line Connection Suction Side
Ø 40 mm, 4 holes, M6
Line Connection Pressure Side
Ø 35 mm, 4 holes, M6
Max. Operating Pressure (bar)
250
Temperature Range (NBR Seals)
-30 °C to +80 °C
Hole Pattern Adapter Plate (mm)
60 x 60 (2 x)
Viscosity Range (Continuous Operation)
12-800 mm²/s
Manufacturer
Bosch Rexroth

This component features plain bearings for high loads and drive shafts that conform to ISO or SAE standards. It offers line connections via flanges or screw-in threads.
